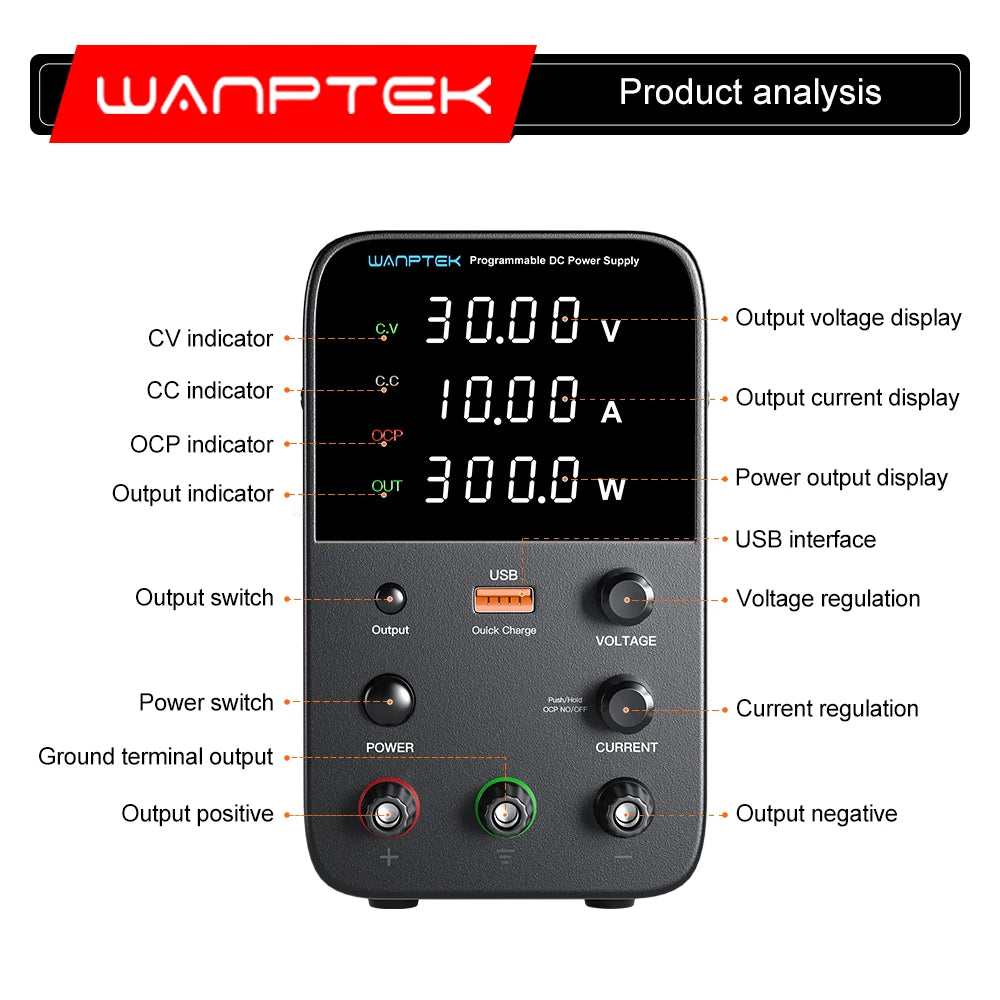

Wanptek Adjustable DC Power Supply 30V 10A 60V 5A Lab Bench Power Source Stabilized Power Supply Voltage Regulator Switch 120V
: In stock
Regular price
$0.00
$241.96
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
SPECIFICATIONS
Brand Name: wanptek
Certification: CE
Features1: Gold-plated metal power supply
Features2: Metal Anodizing Power Supply
Features3: laboratory power supply
Features4: WPS3010H
Features5: APS3010H
Features6: NPS3010W
High-concerned chemical: None
Model Number: WPS3010H APS3010H
Origin: Mainland China
Output Current: 0-10A
Output Frequency: 50HZ 60HZ
Output Power: 201 - 300W
Output Type: SINGLE
Rated Capacity: ＜40VA
Type: Power Supply
is_customized: No

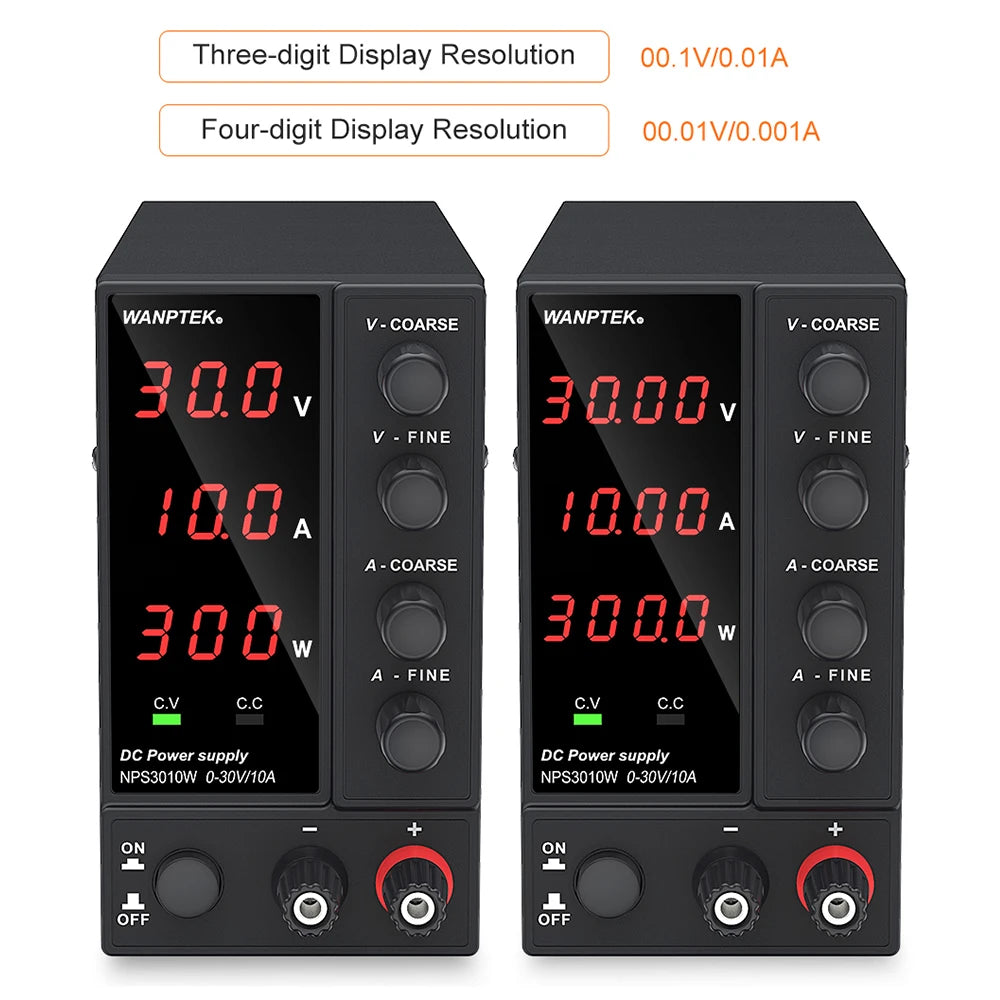

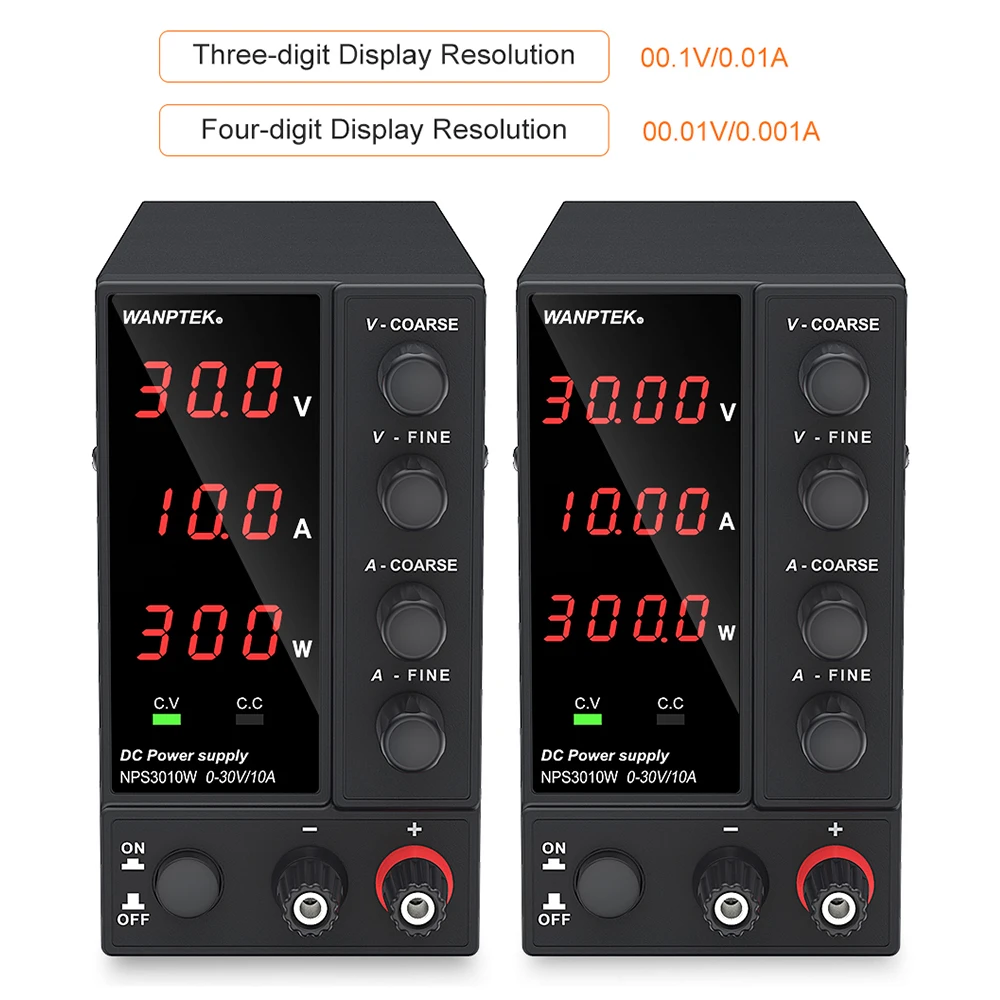

Three-digit display 0.1 V/0.01 A

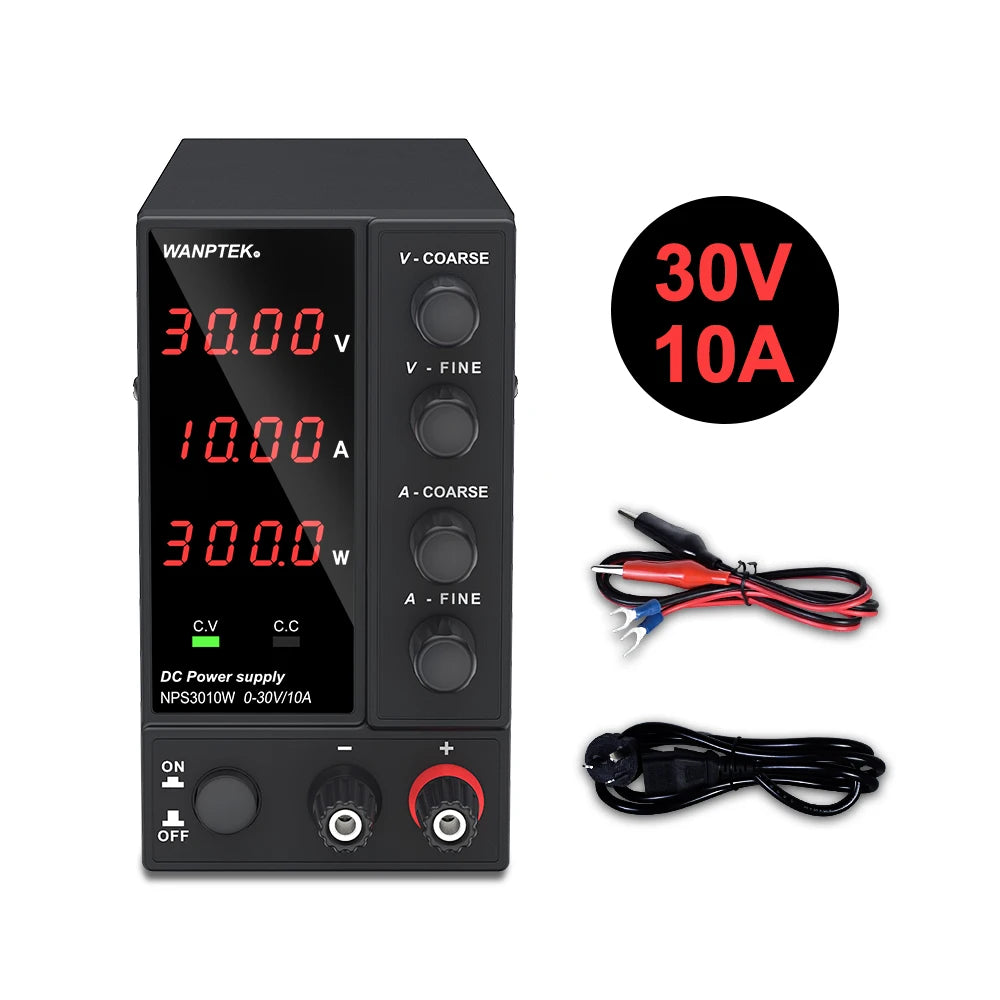

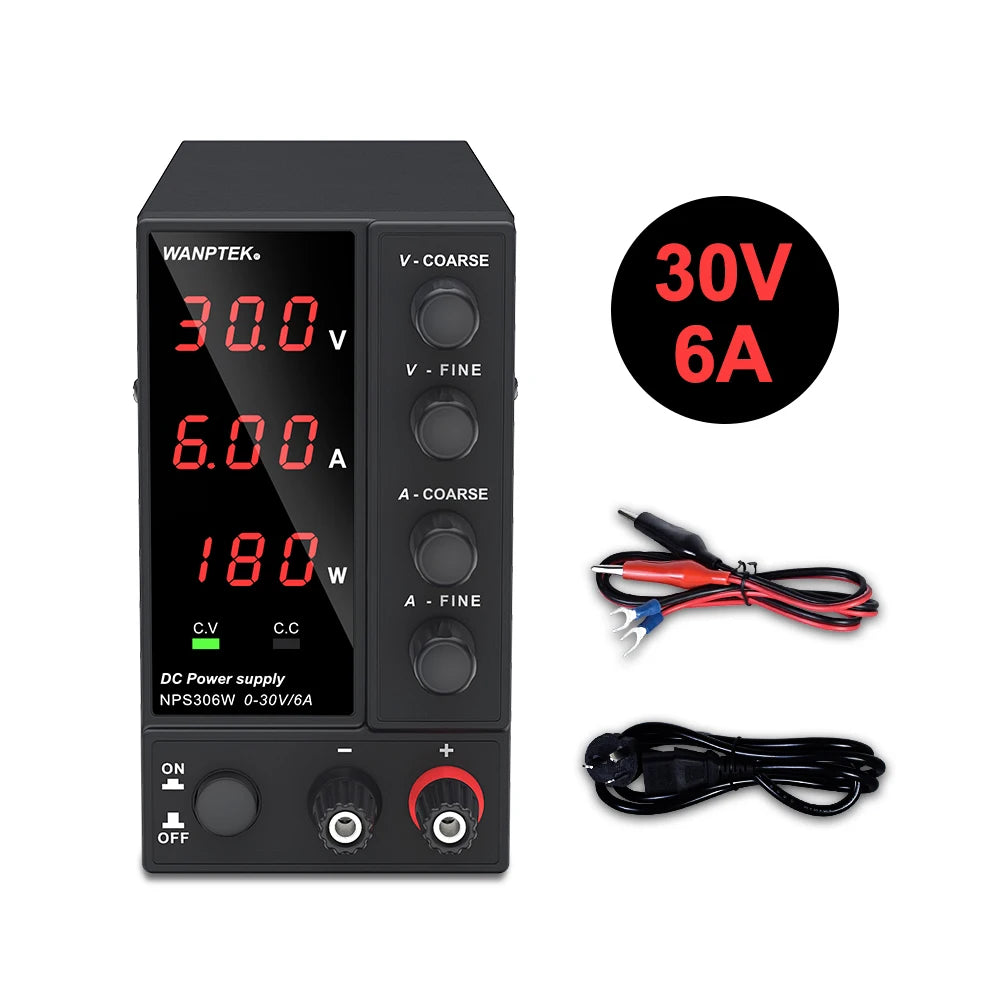

1.NPS306W NPS3010W Resistance adjustment DC power supply

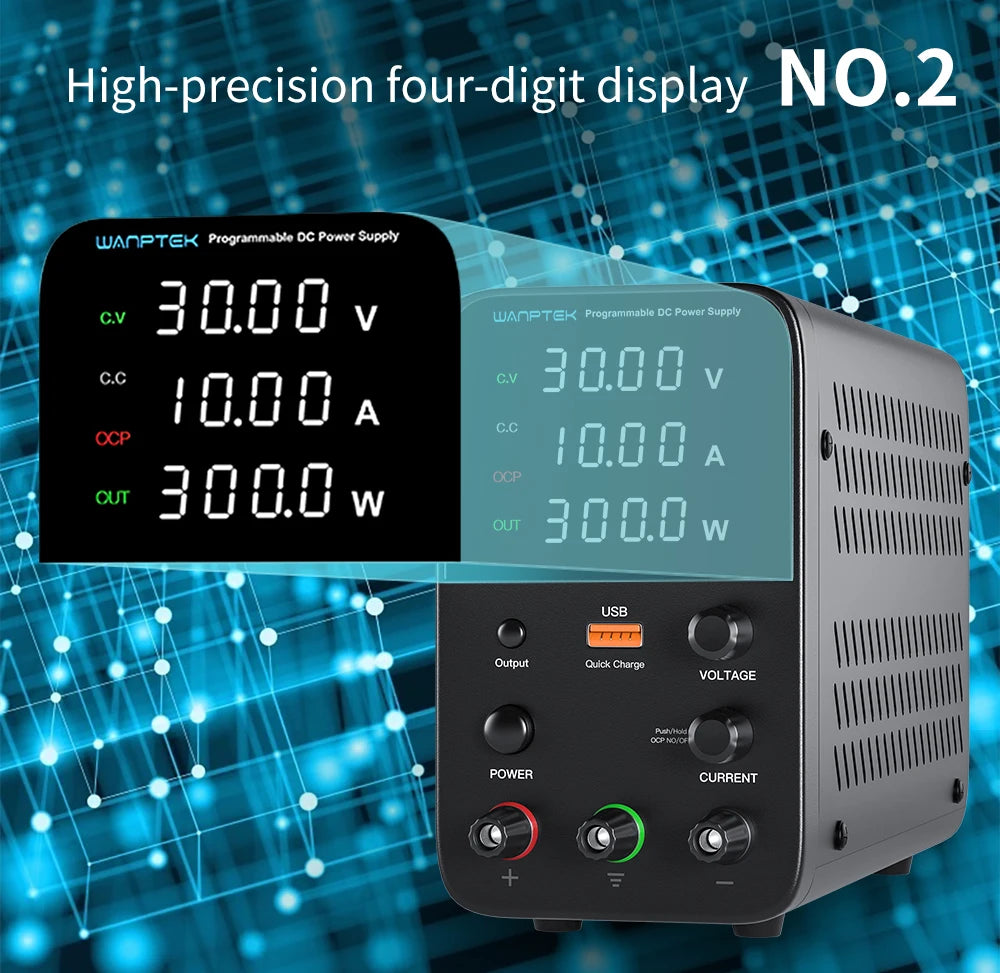

Four-digit display 0.01 V/0.001 A

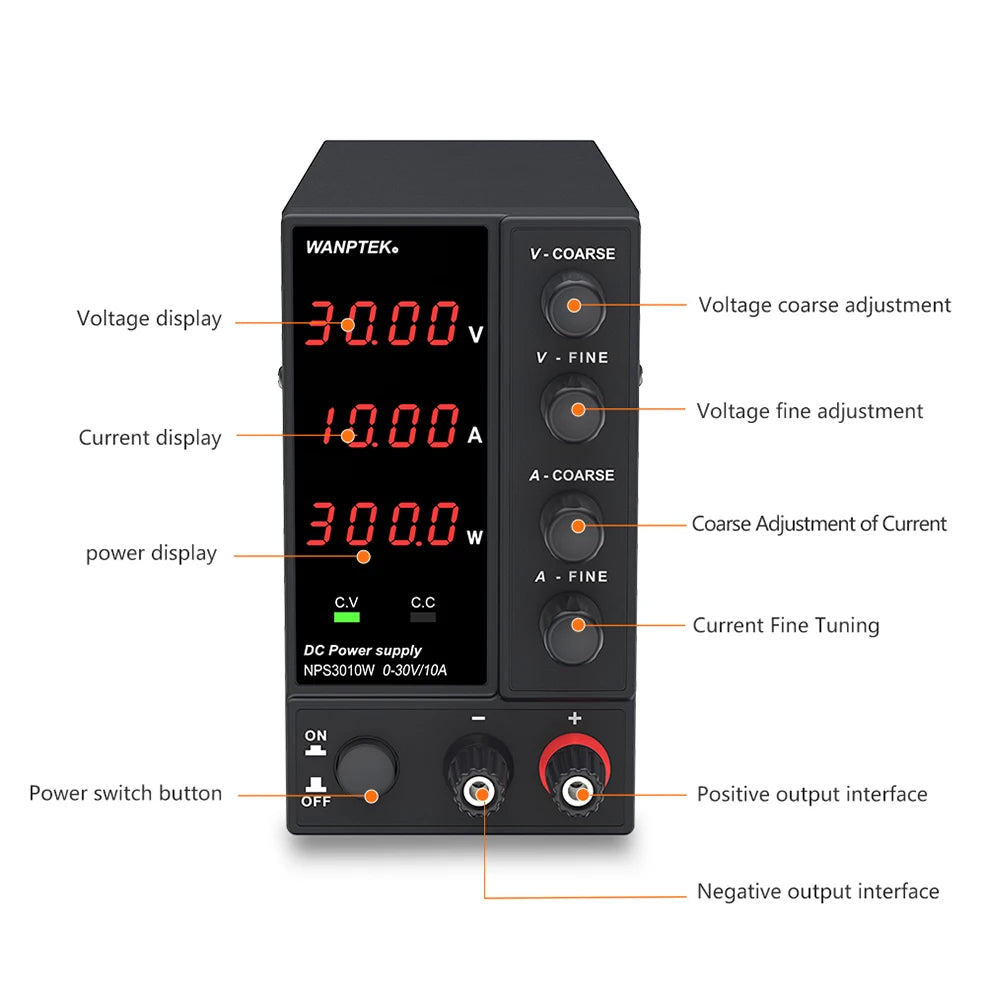

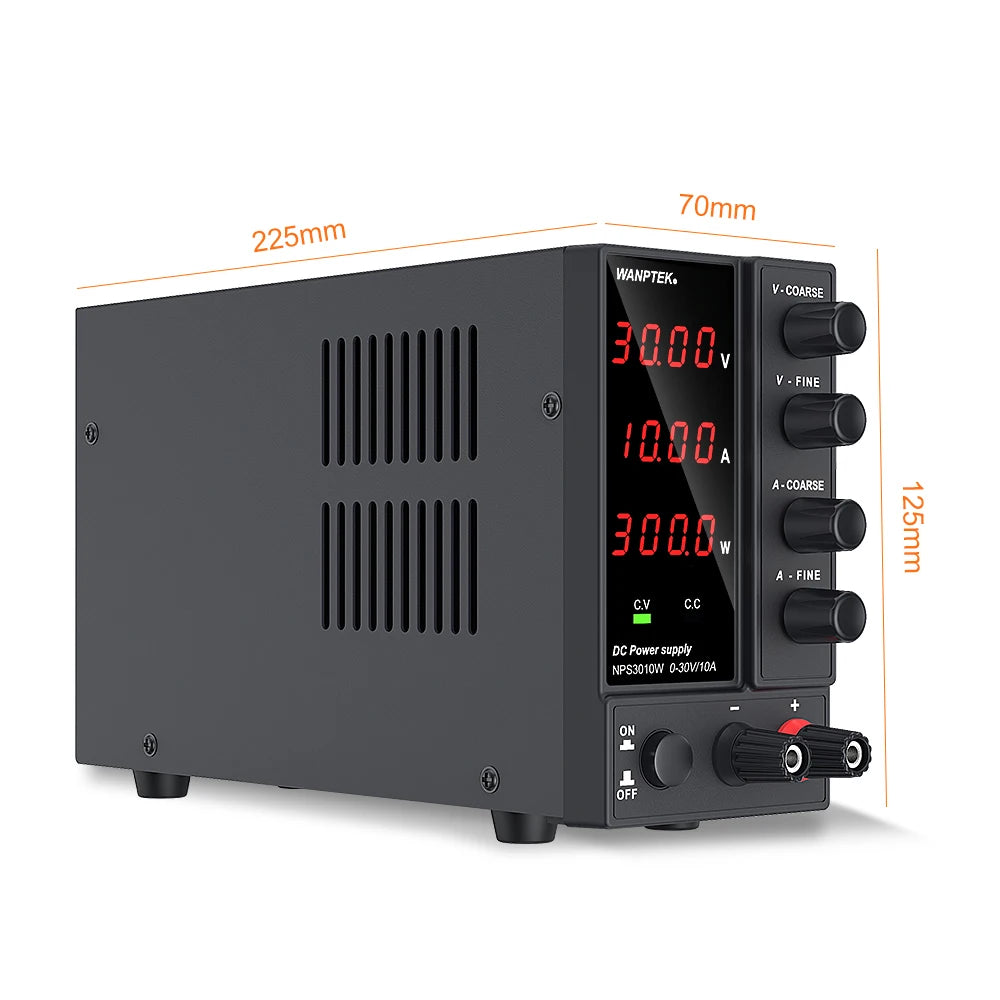

1. NPS3010W Resistance adjustment DC power supply

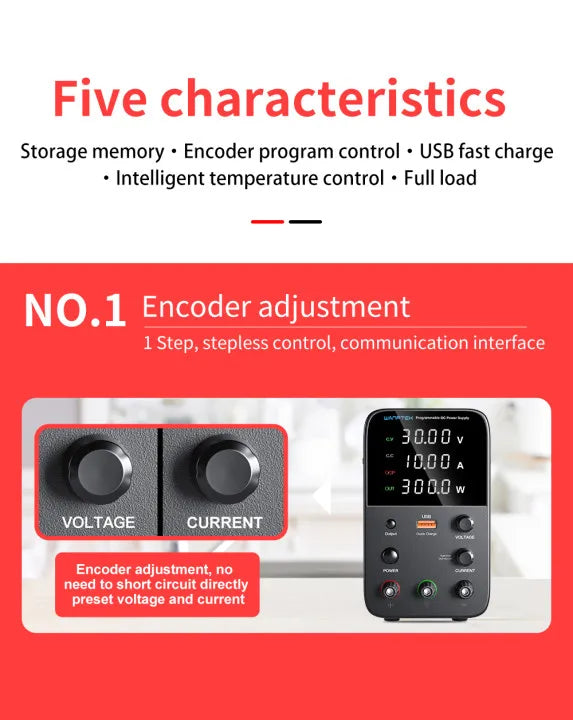

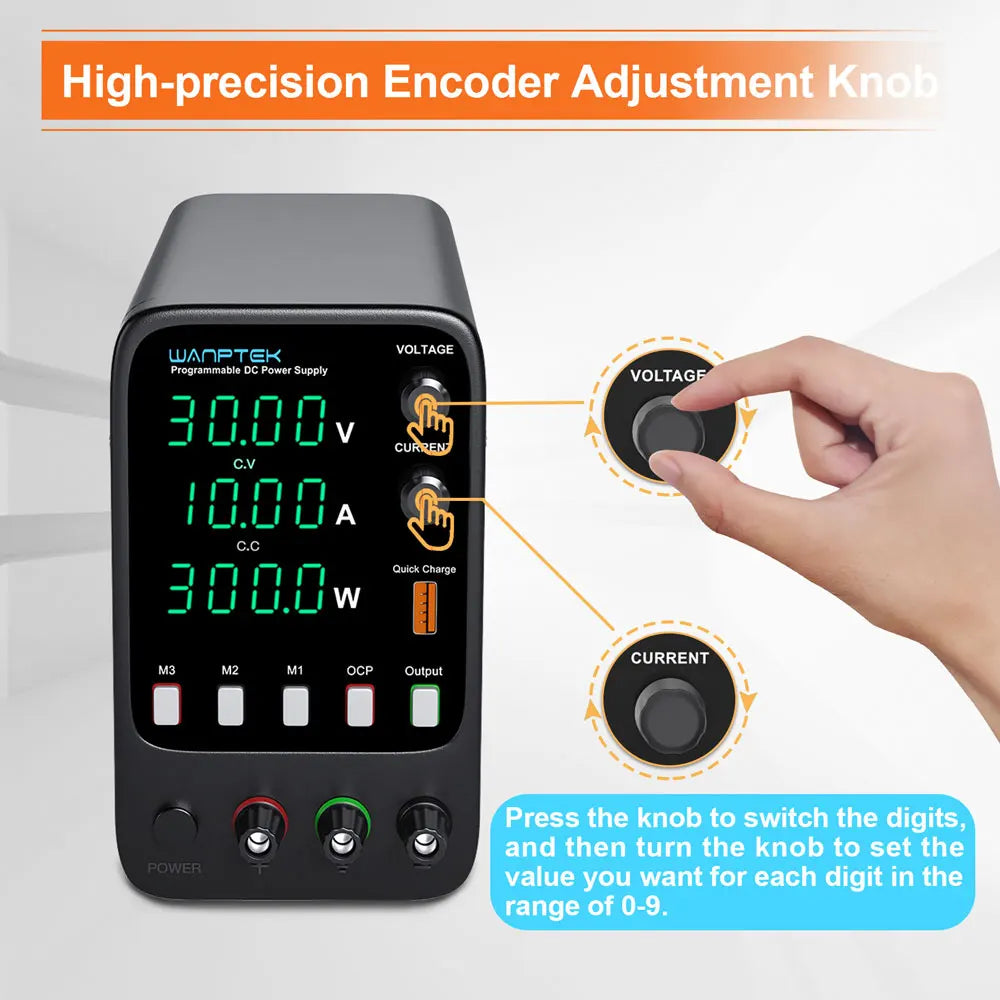

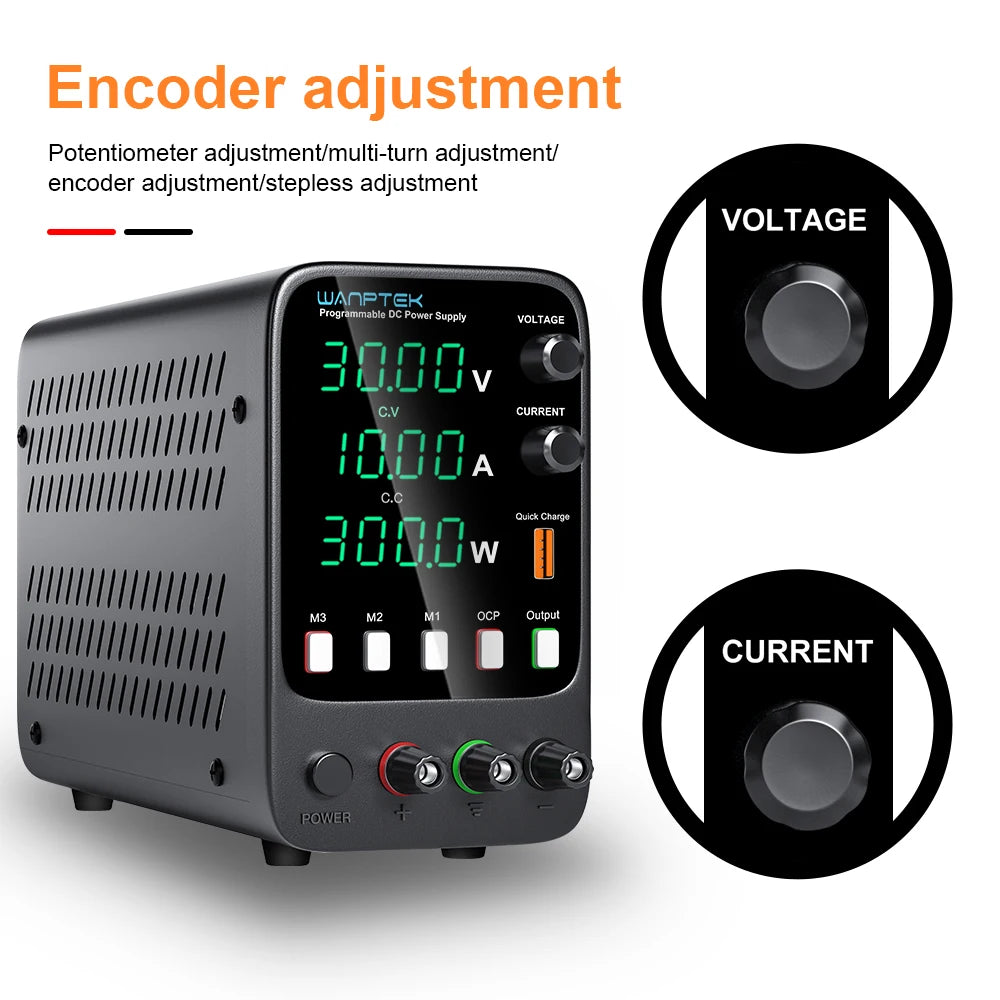

2.WPS1602H/WPS1203H/WPS3010H/WPS605H/WPS305H Encoder adjustment DC power supply

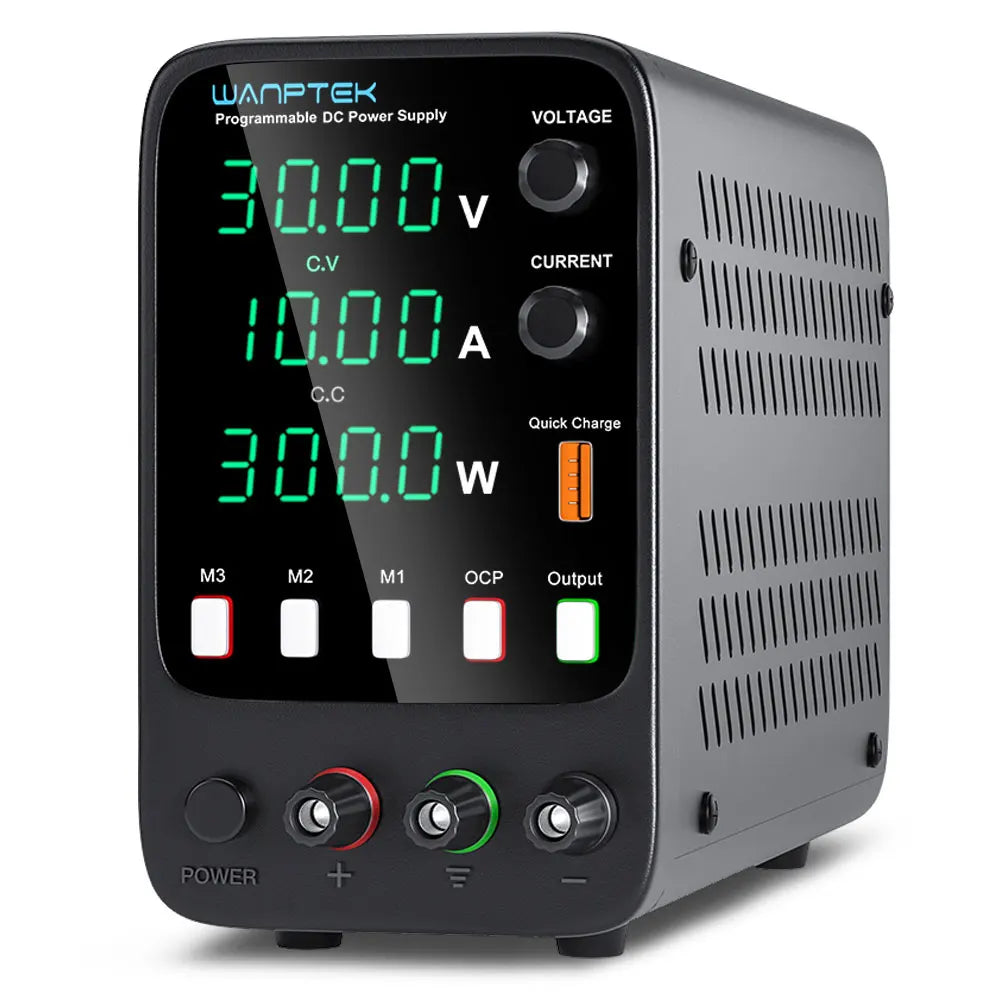

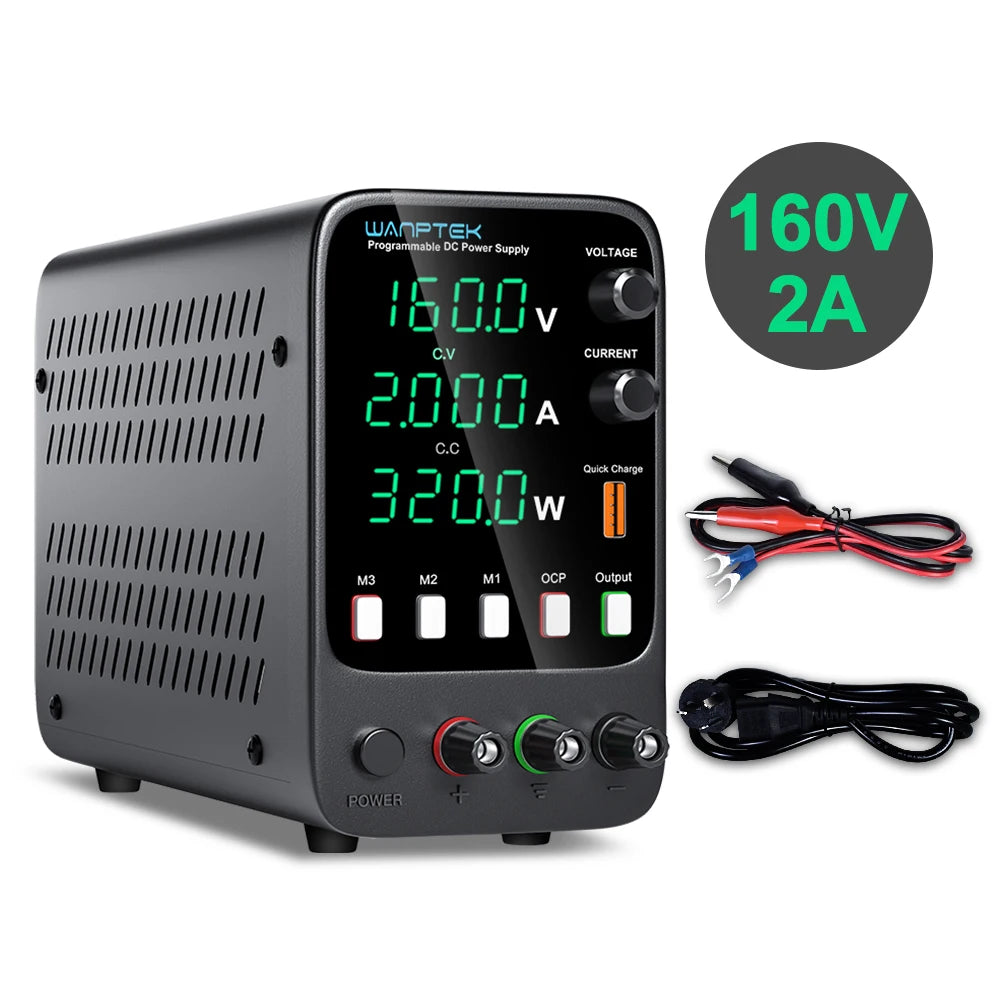

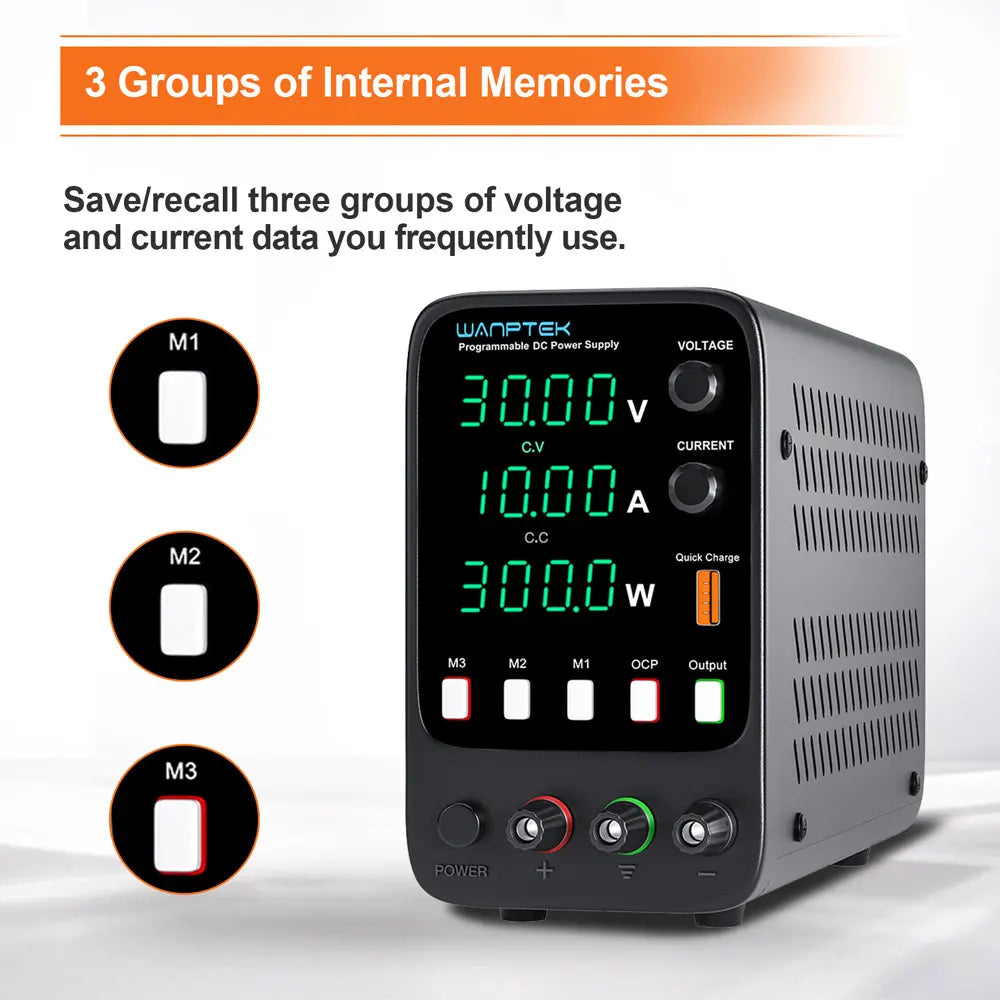

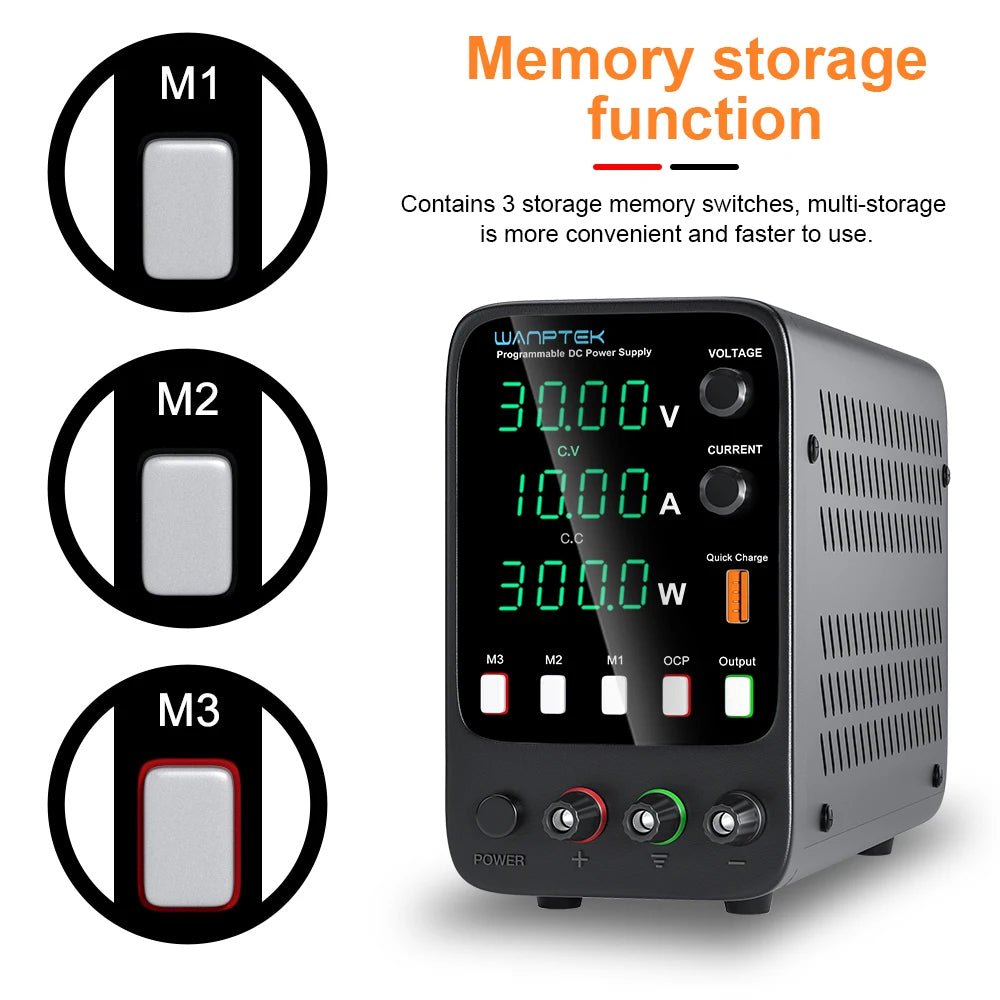

3.APS1602H/APS1203H/APS3010H/APS605H/APS305H Encoder adjustment (With memory storage function) DC power supply

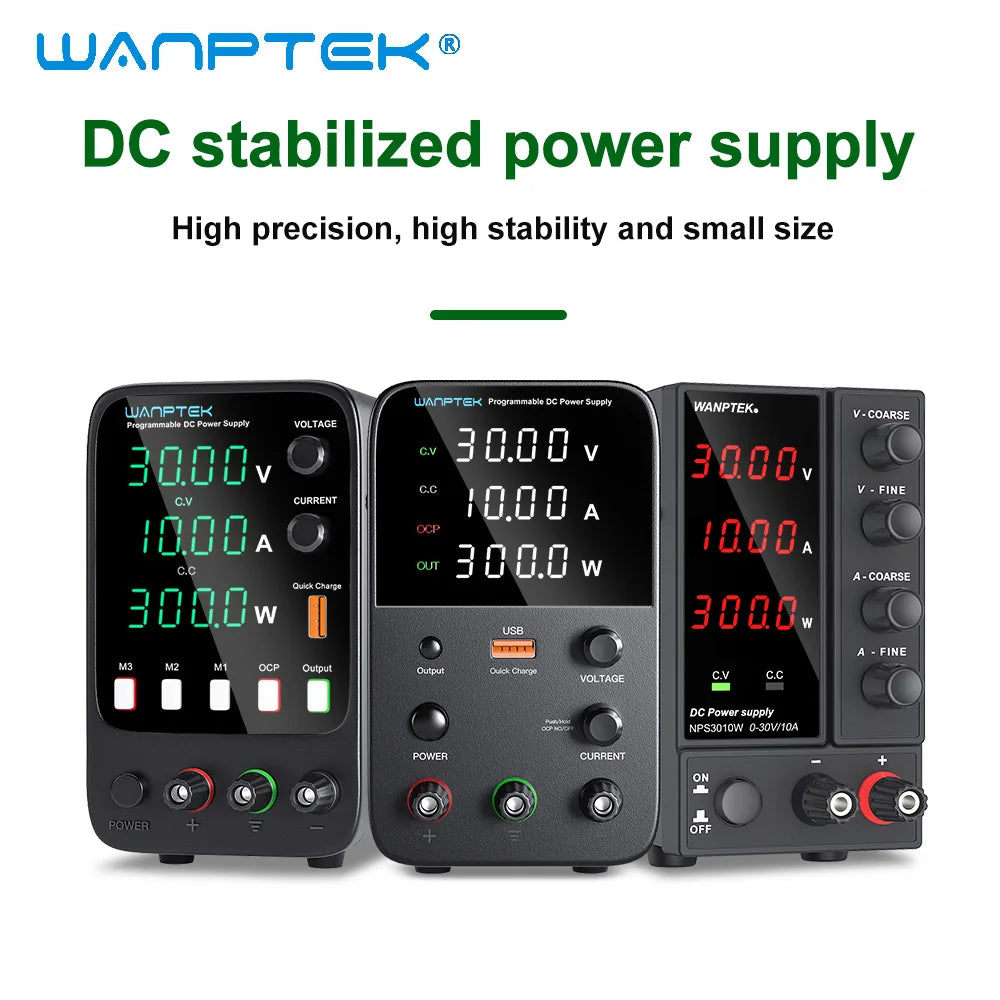

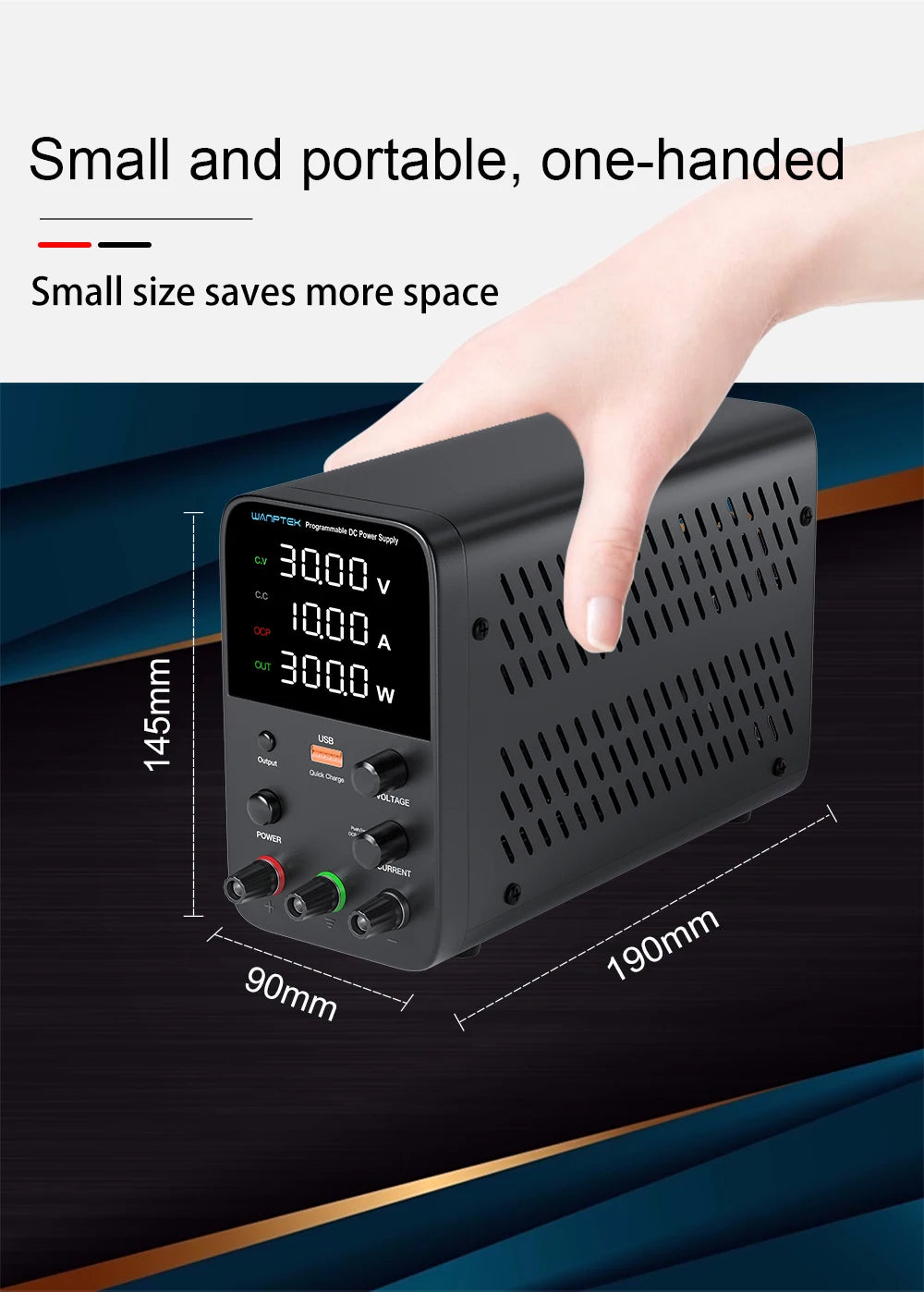

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine
Output Power |
150W/300W/320W/360W |
Output voltage |
0~30V/60V/120V/160V |
Output current |
0~2A/3A/5A/10A |
working environment | |

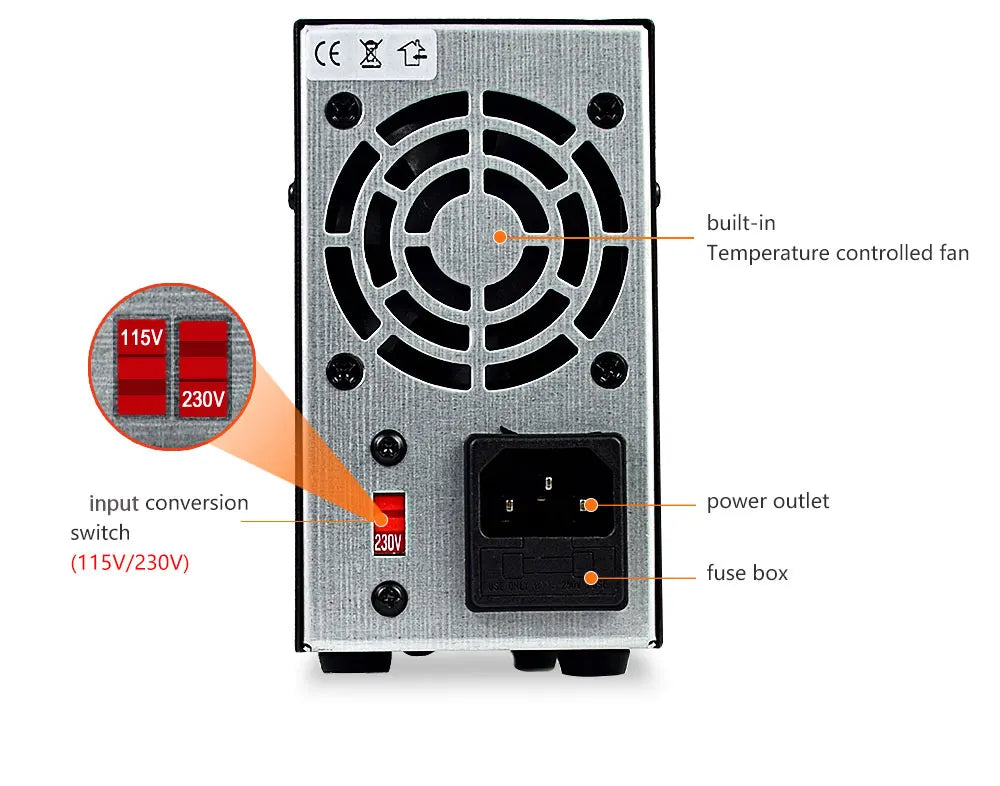

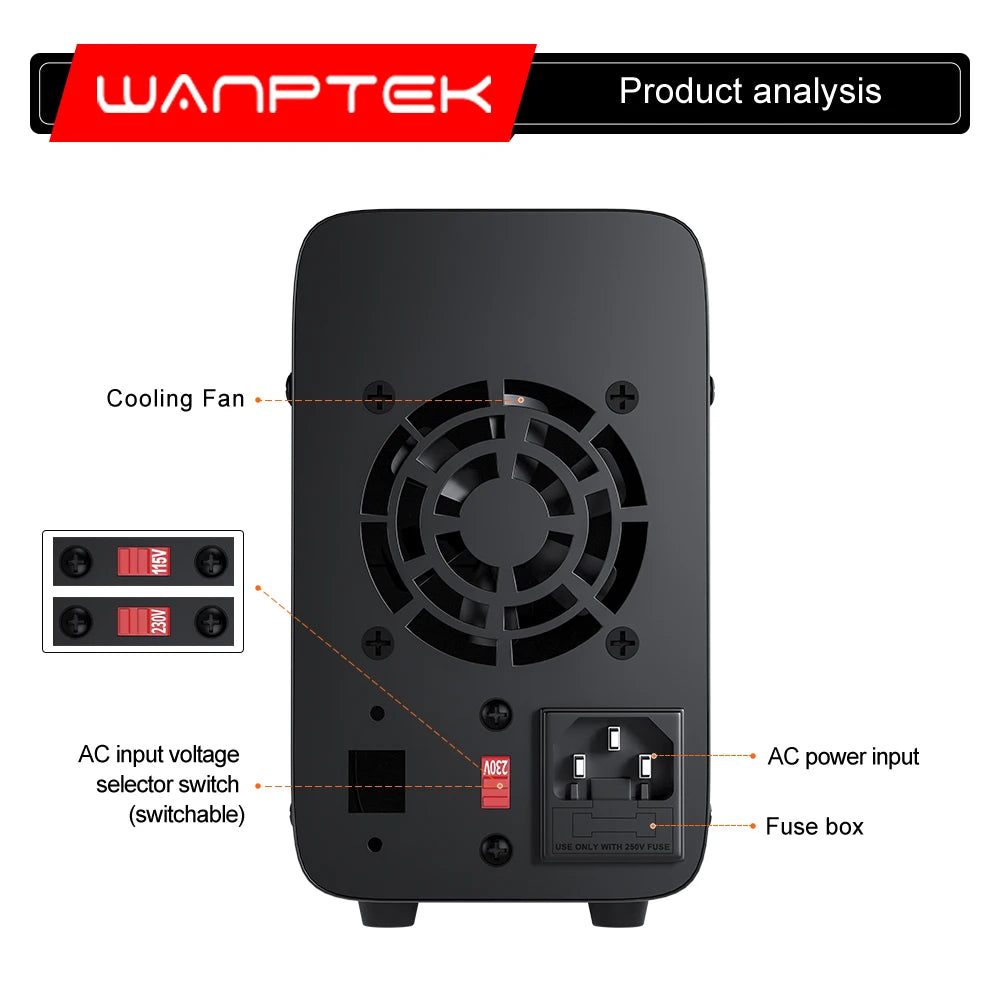

input voltage:AC 230V/115V±10%;50Hz/60Hz |
|
Working temperature:0℃～40℃;relative humidity:<80%RH | |
Storage temperature:-10℃～70℃;relative humidity:<70%RH | |
Constant voltage CV | |
Voltage stability:0.1%±3mV |
|
Load stability: 0.2%±3mV | |
Ripple voltage:≤0.5% Vp-p | |
0 to rated voltage continuously adjustable | |
constant current CC | |
Current stability:0.1%±3mA |
|
Load stability: 0.2%±3mA | |
Ripple current:≤0.5% Vp-p | |
Recovery time:≤500μS | |
Temperature coefficient:≤100ppm/℃ | |
0 to rated current continuously adjustable | |

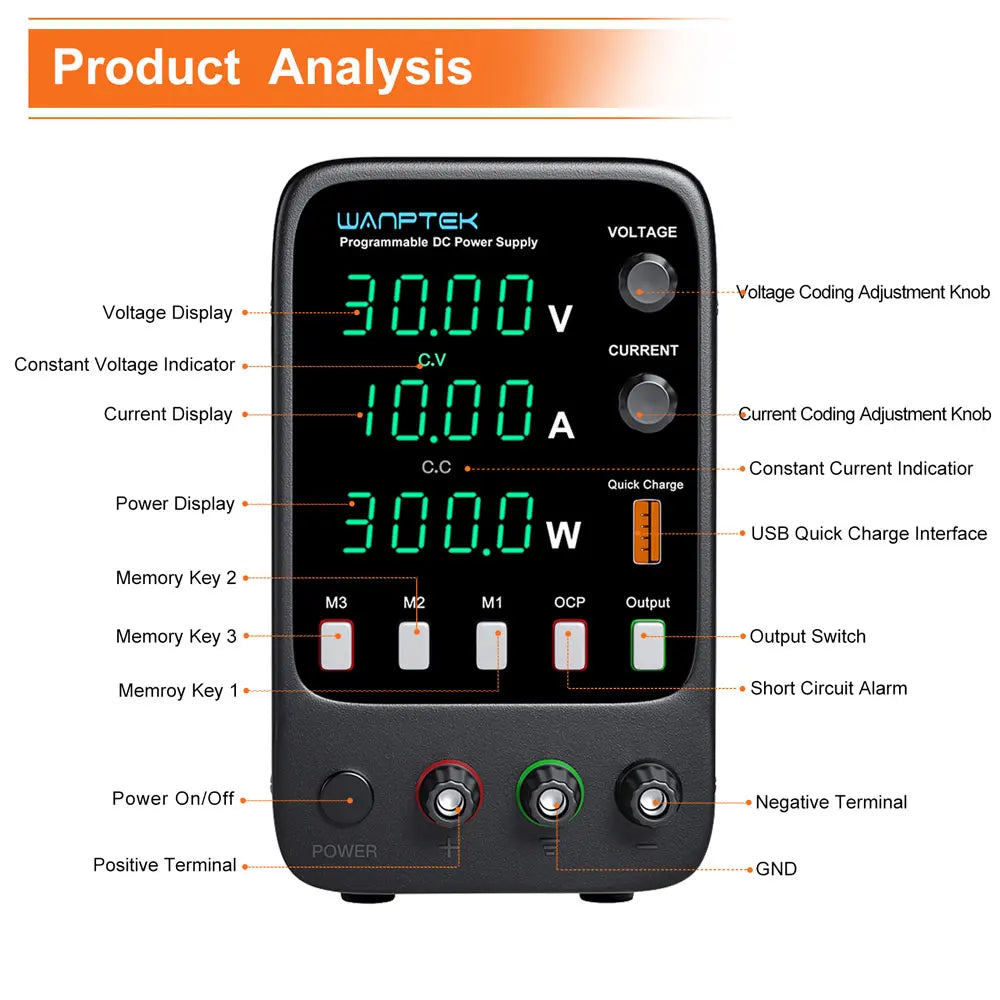

display | |
LED digit display |
|
Display accuracy:0.5%±digits | |
Display resolution: voltage 0.1V, current 0.01A,voltage 0.01V, current 0.001A、 | |
2. Mobile phonemaintenance, computermaintenance, electrical appliance maintenance,Car DVD, car audio.
3. Product aging, electroplating,such as resistors, capacitors, relays, DC motors, LEDs, etc.
4. Charge the battery.
5. Laboratory, scientific research teaching,factory, maintenance power supply.school laboratories scientific research and production line use
6. All other occasions requiring DC power supply.

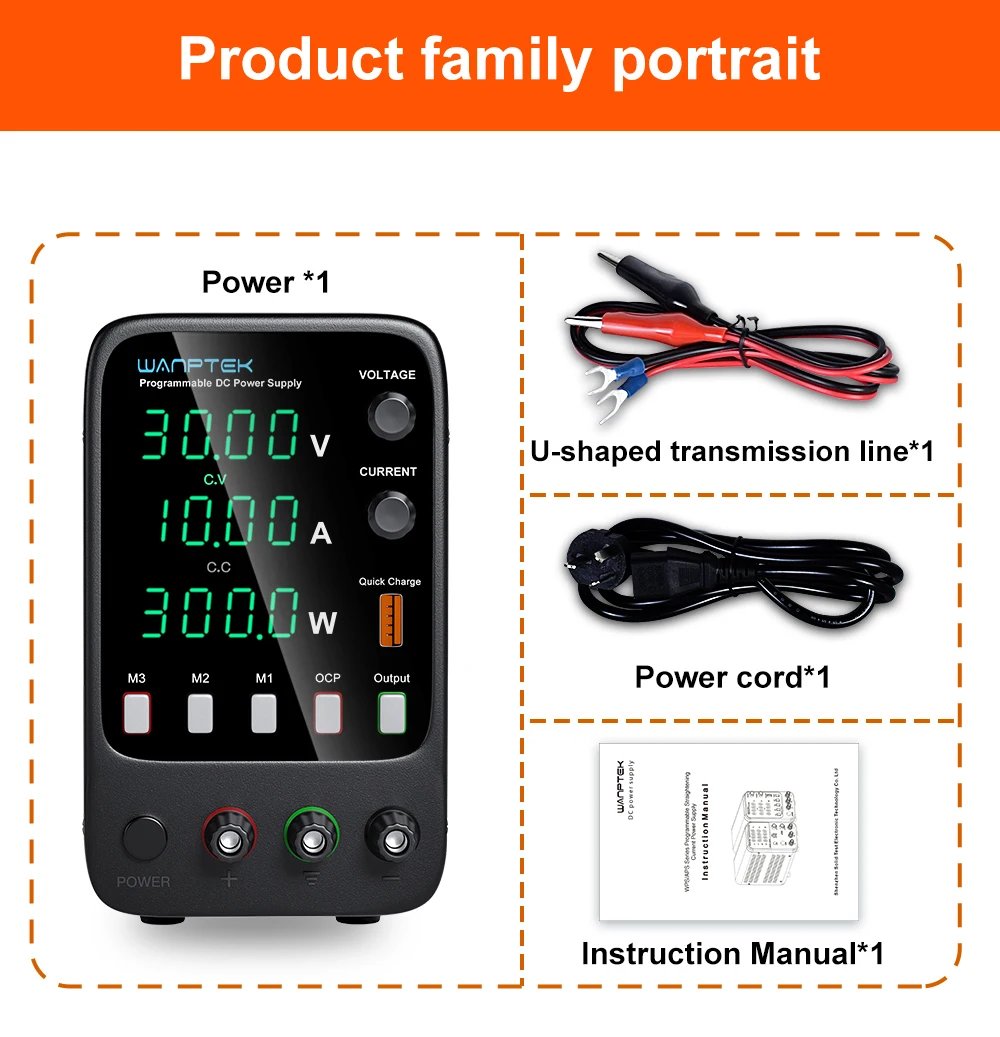

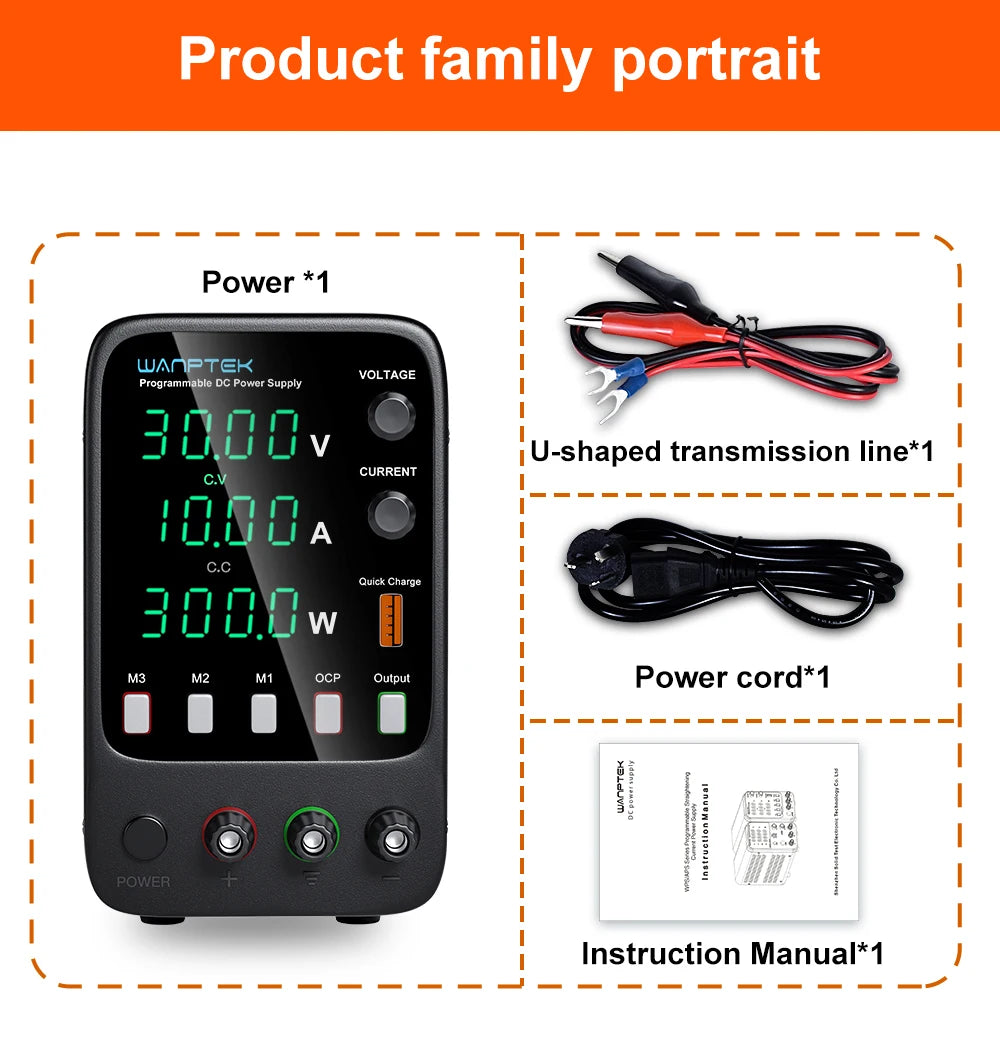

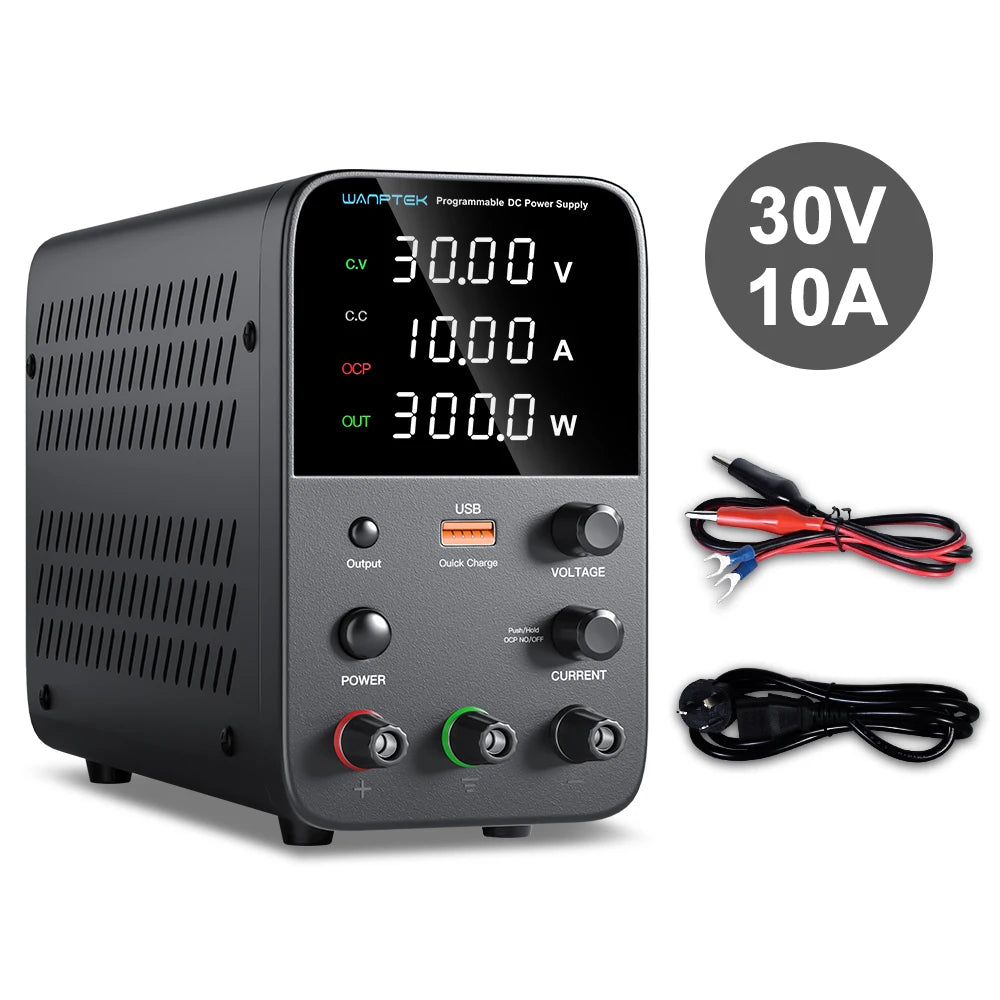

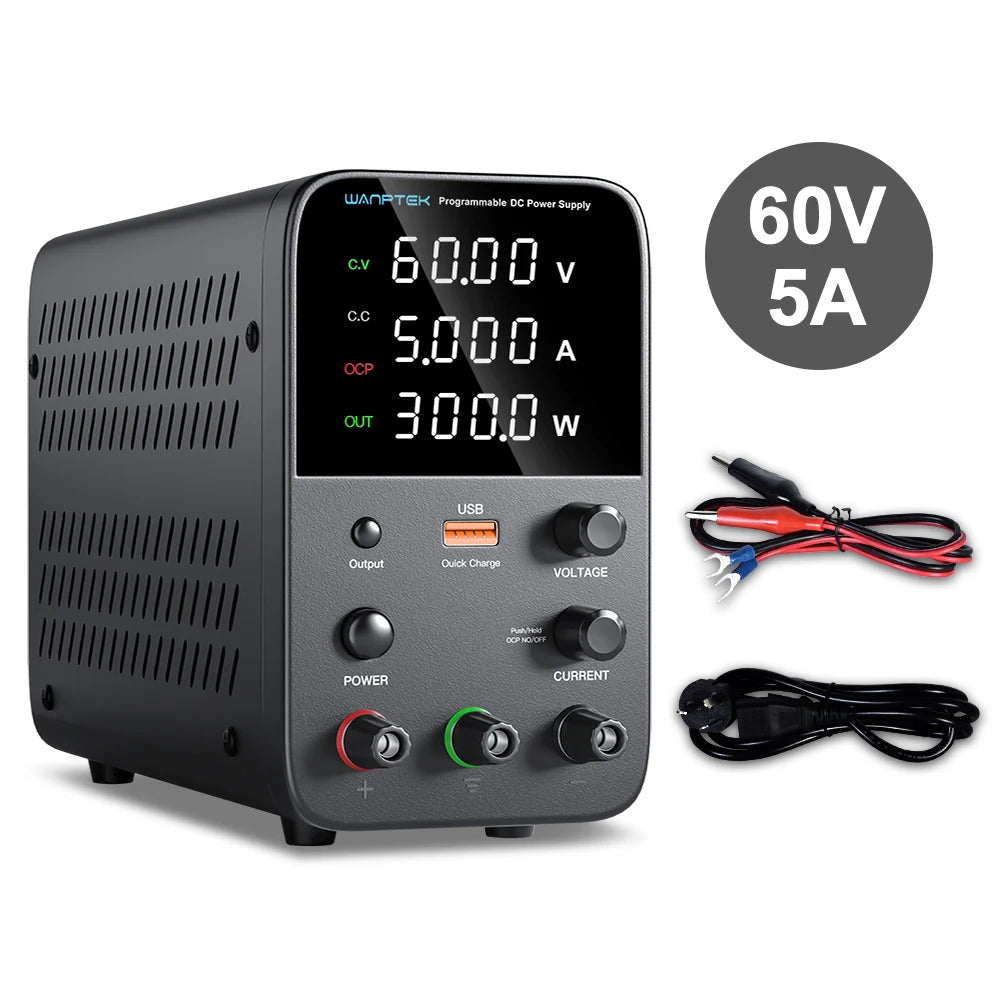

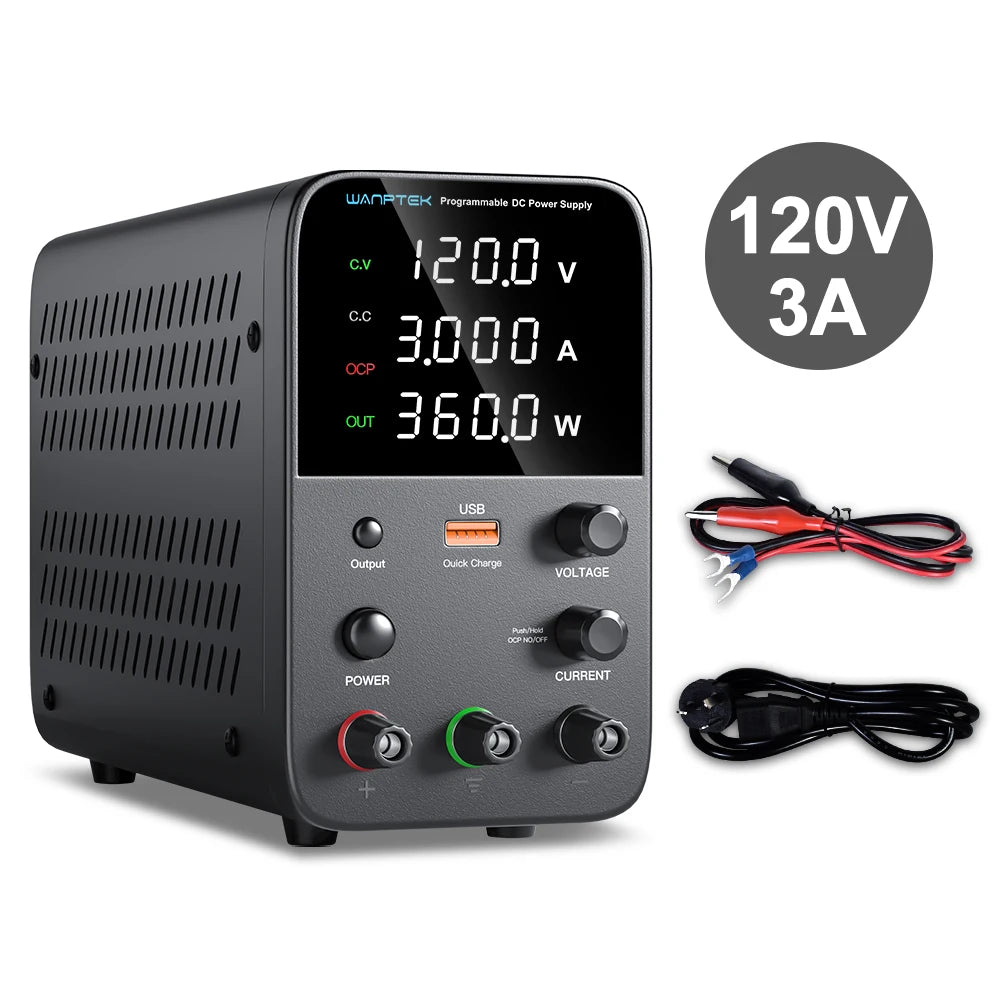

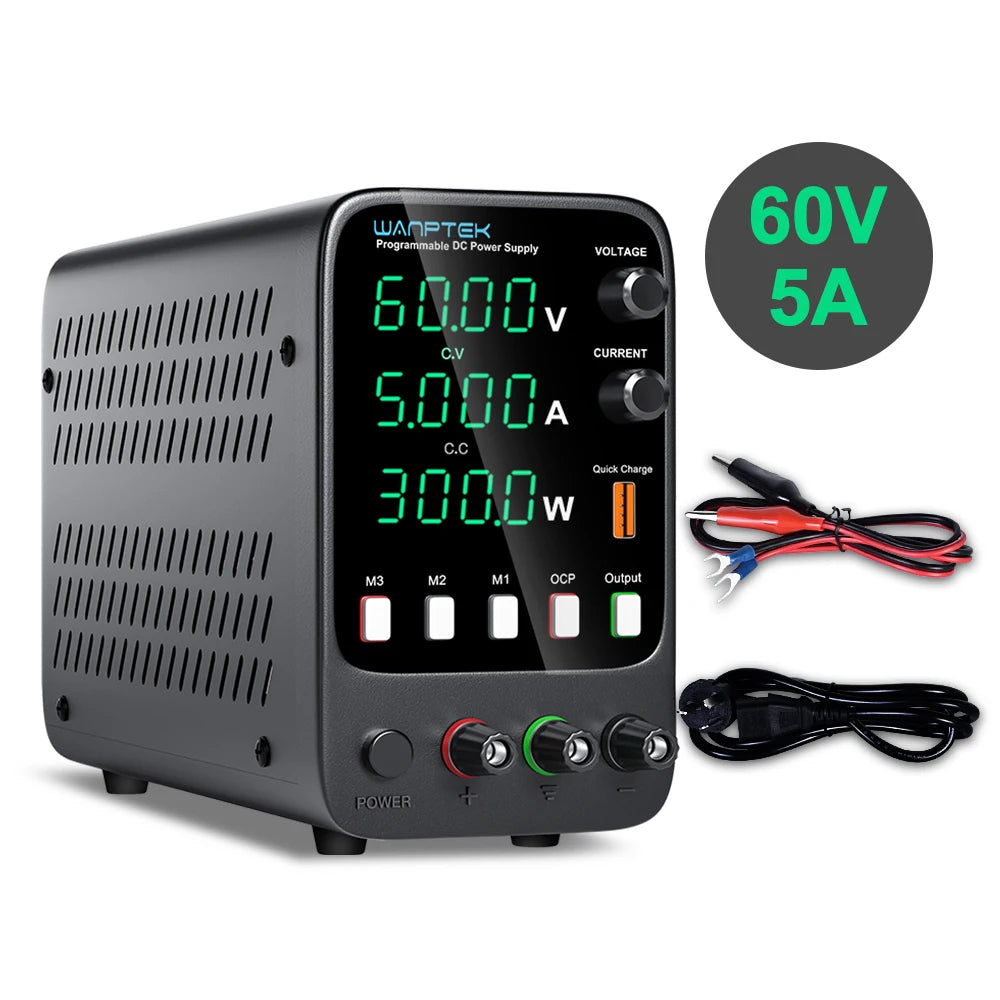

1x DC power supply
1x power cord (EU,US,UK,AU)
1x Test line
1x Instructions
