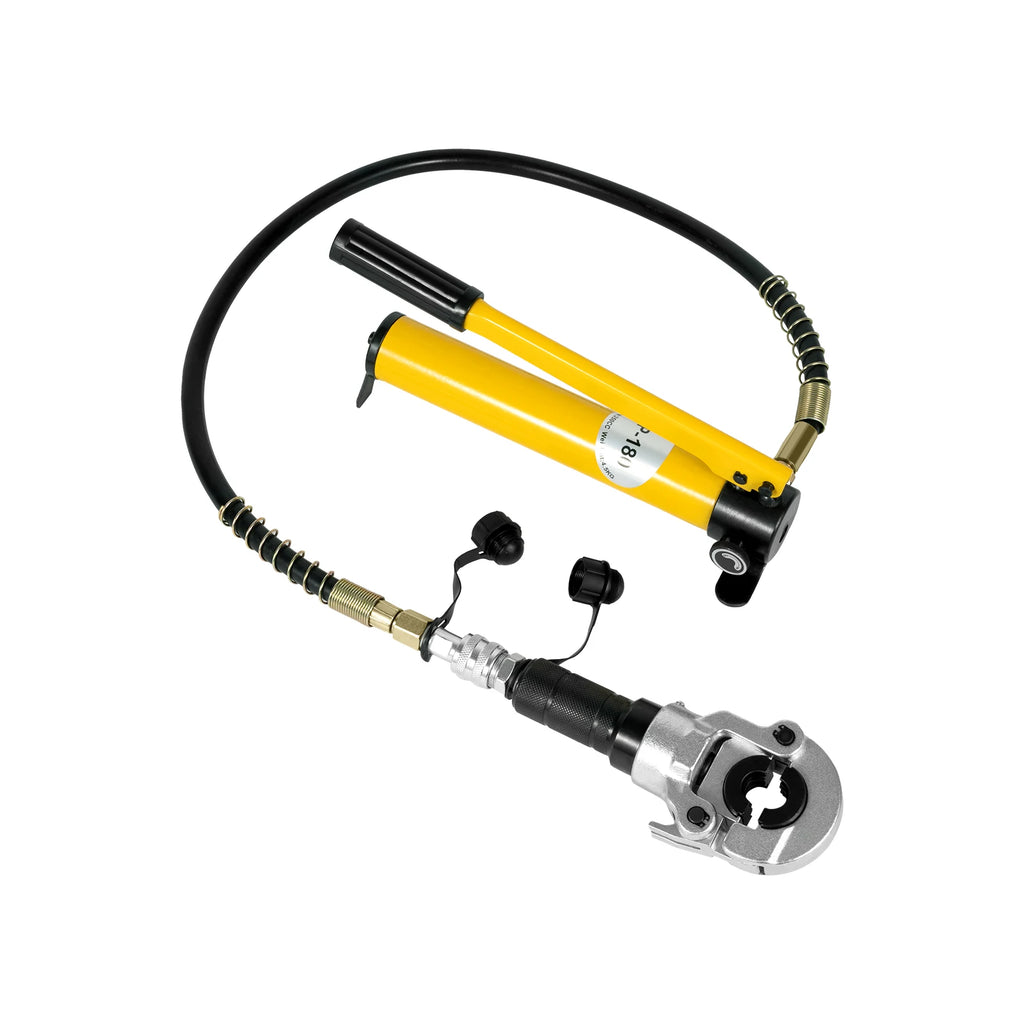

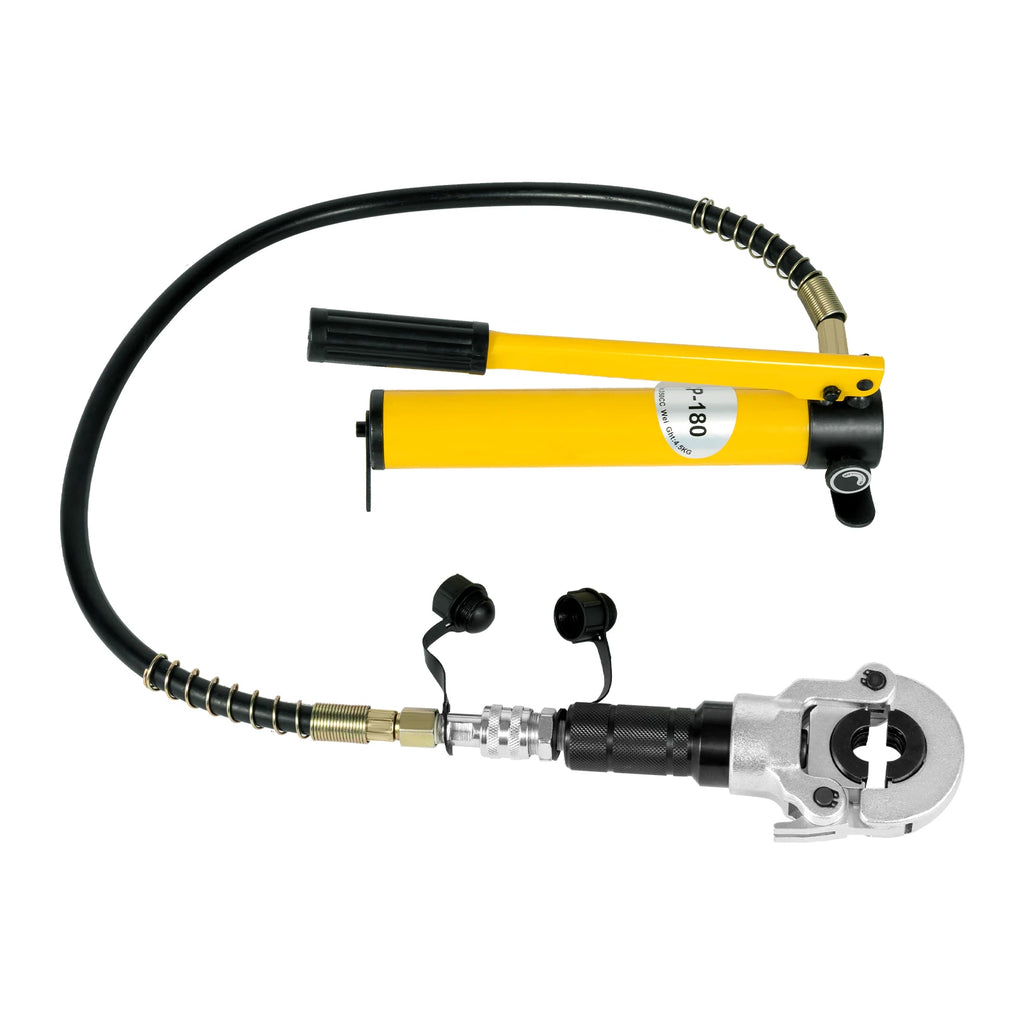

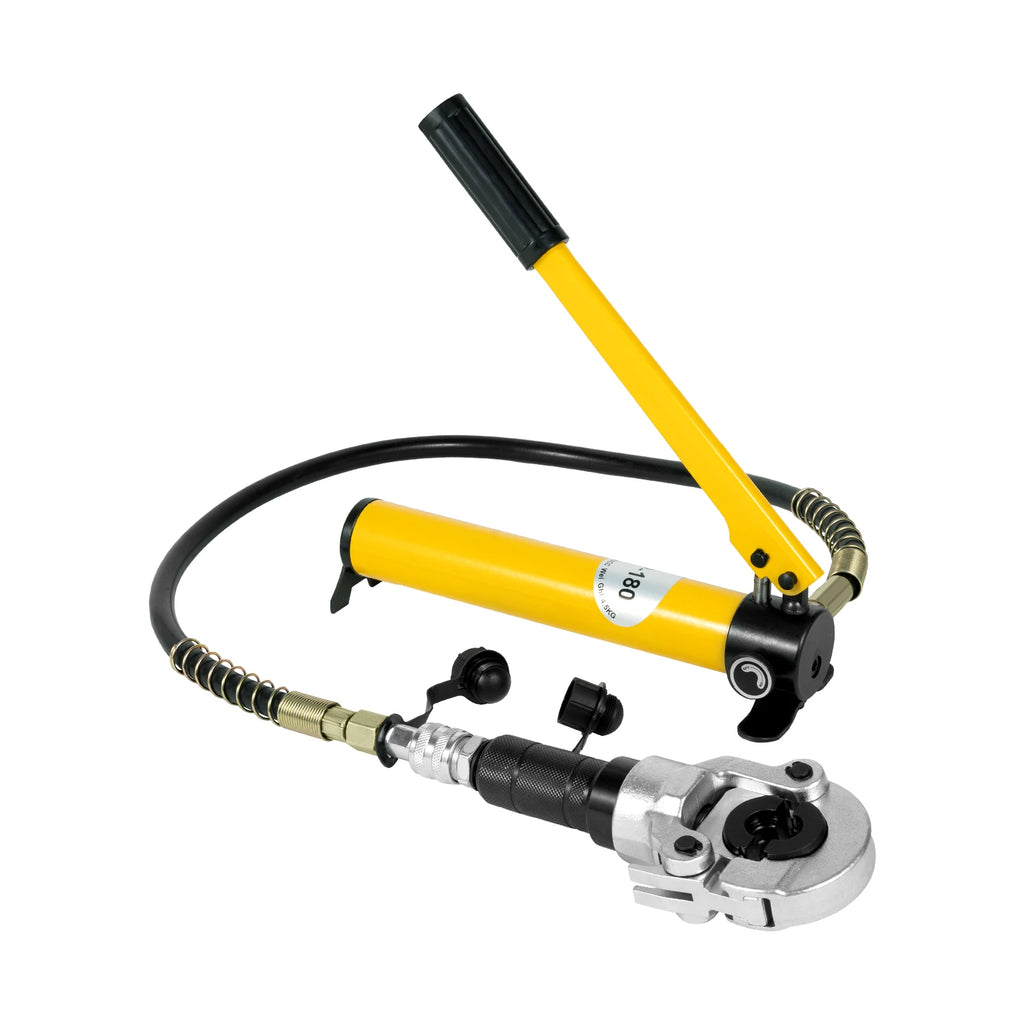

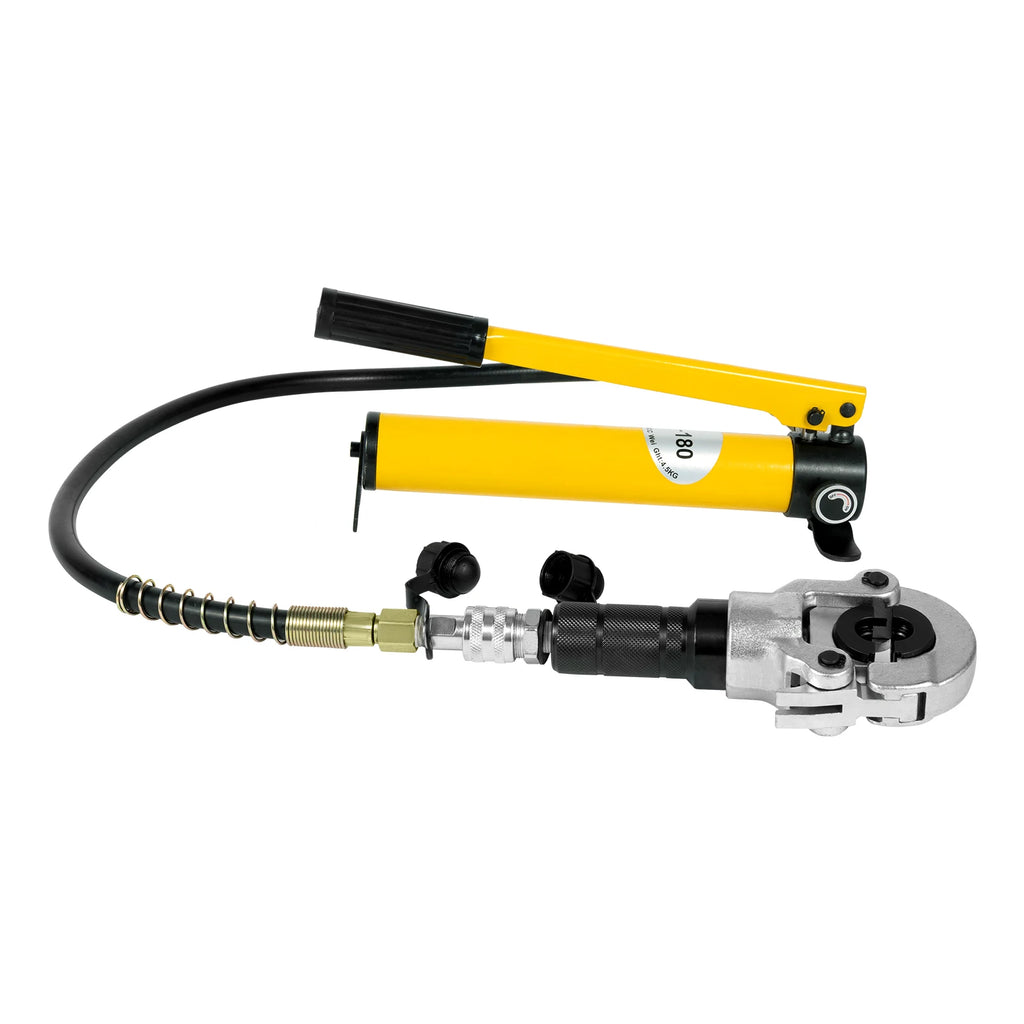

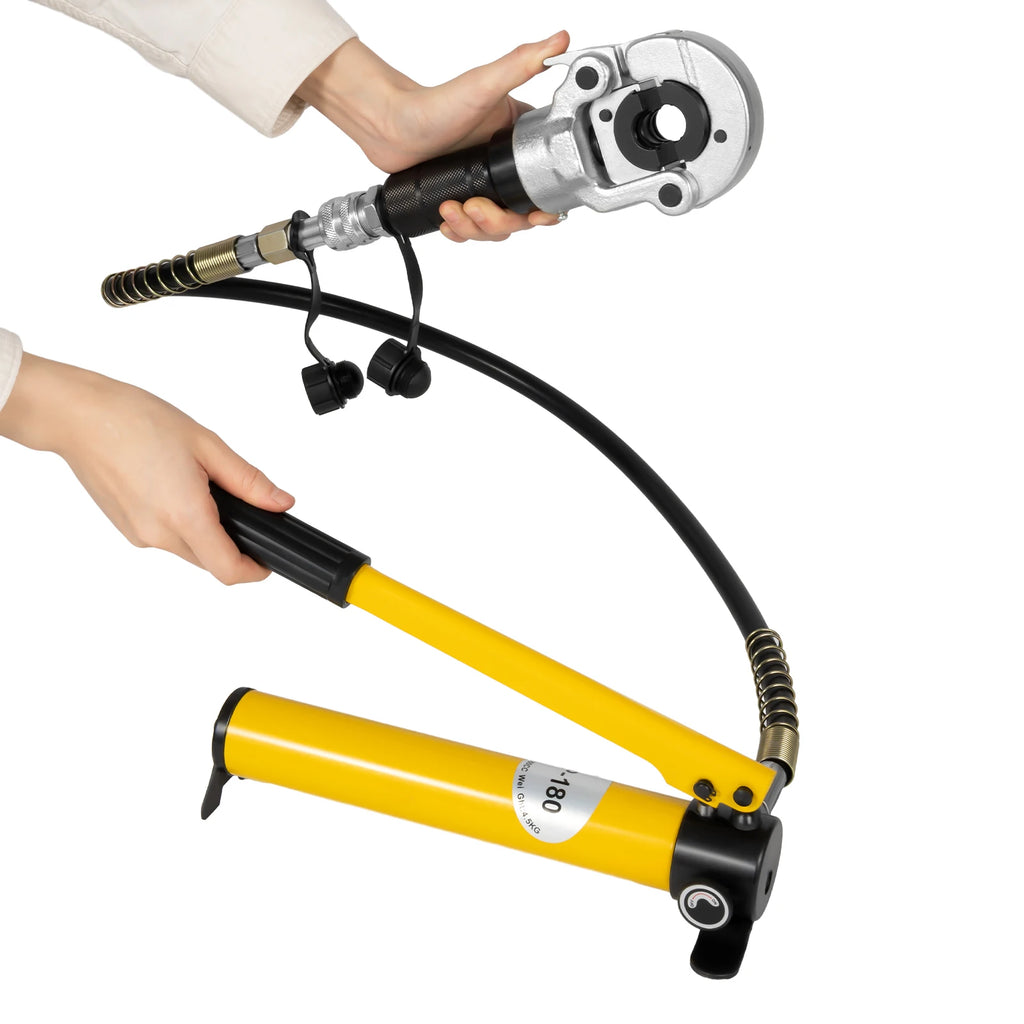

This hydraulic tool is suitable for crimping aluminum pipe, PEX pipe, PB pipe, copper pipe, stainless steel sleeve, etc. It includes a forged and rotary hydraulic plier head, a manual hydraulic pump, and a long rubber hydraulic hose. Also, it has 9 different-sized dies to replace, which can incredibly improve your work efficiency.

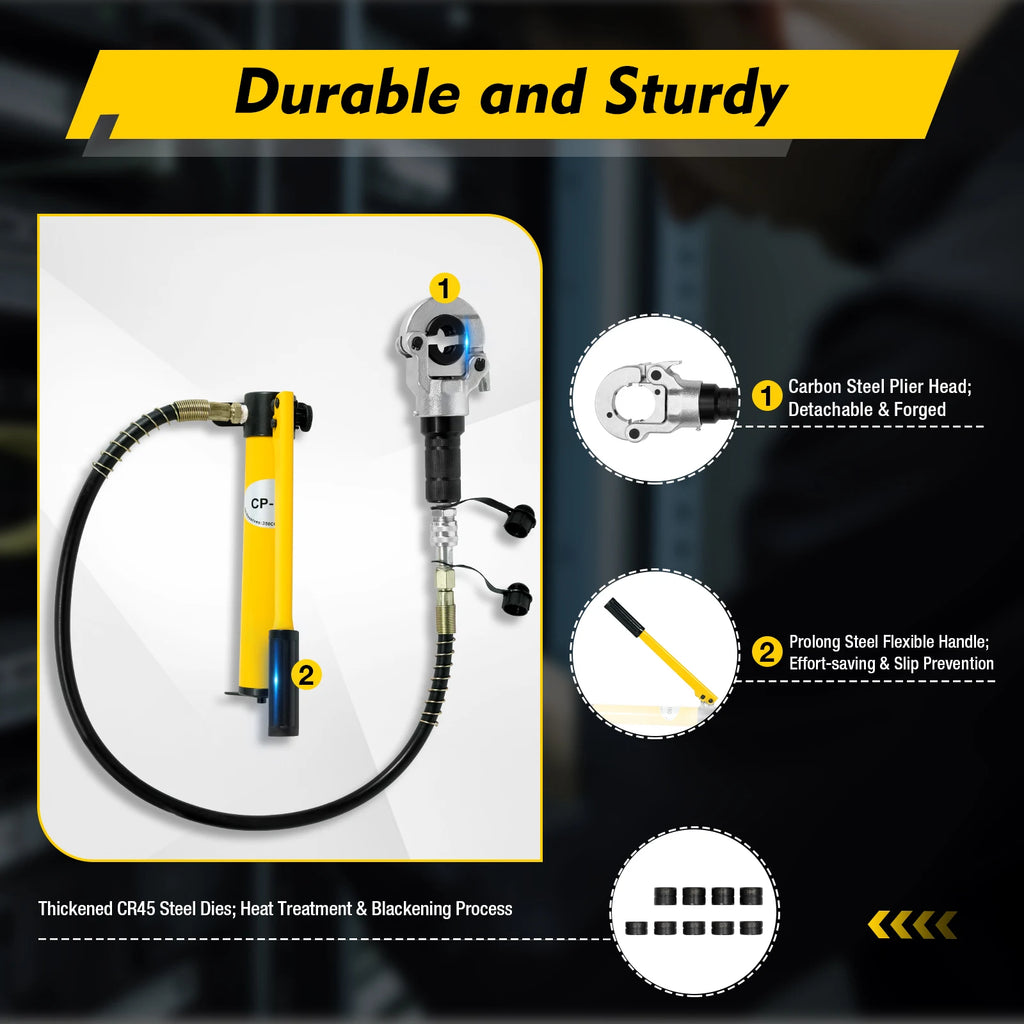

Durable and Sturdy:

The detachable and forged plier head is made of carbon steel, and the thickened CR45 steel dies combine heat treatment and blackening process, providing good long-term performance.

Labor Saving+Pressure Knob:

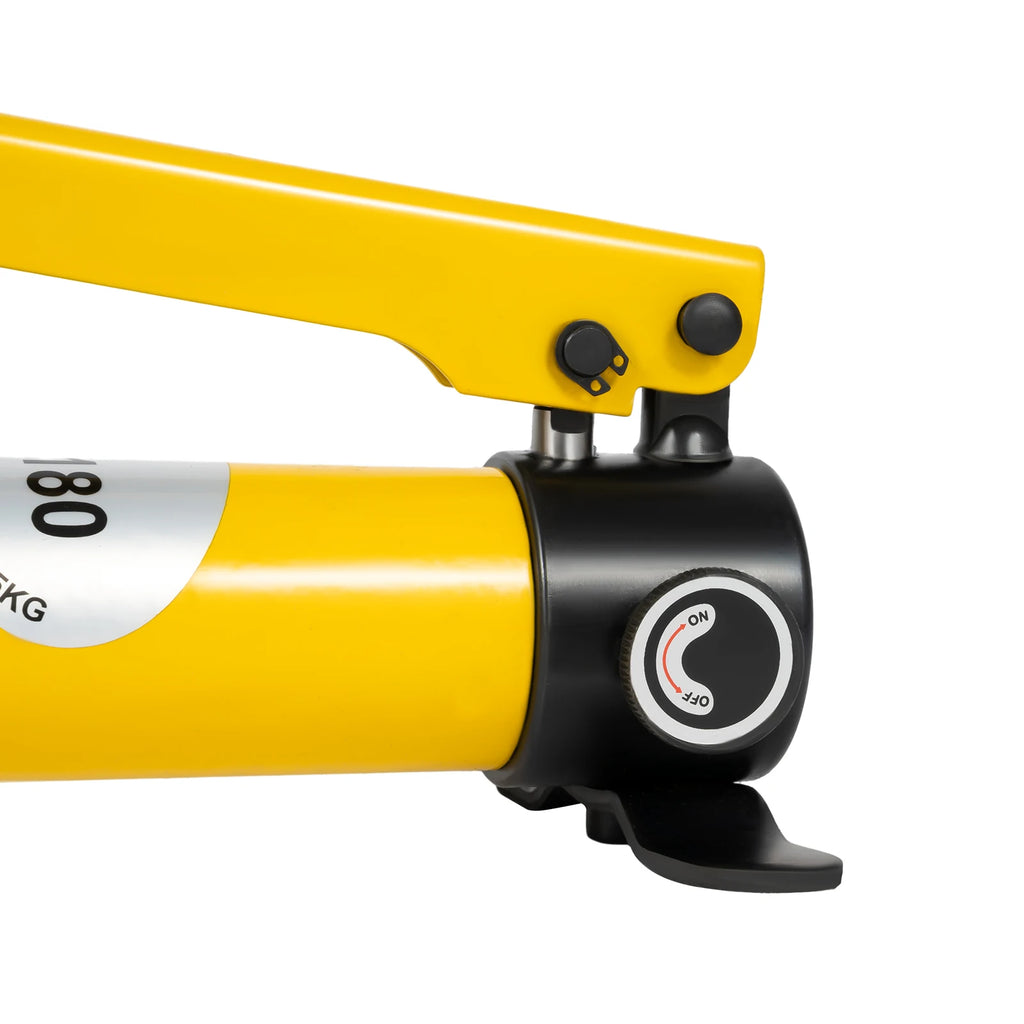

Our hydraulic crimping tool is designed with a hydraulic cylinder, unlike similar hand tools that rely on leverage and hand force so that one person is enough to make leak-free connections.The compression of the hydraulic plier is 6 tons. Also, the manual hydraulic pump is equipped with a pressure knob, which has a max compression of 700kg/cm² and is very efficient for crimping work. It is on the manual hydraulic pump, which can be adjusted manually according to your needs. Adjust it clockwise to the "on" position before crimping and adjust it anticlockwise to the "off" position after finishing crimping.

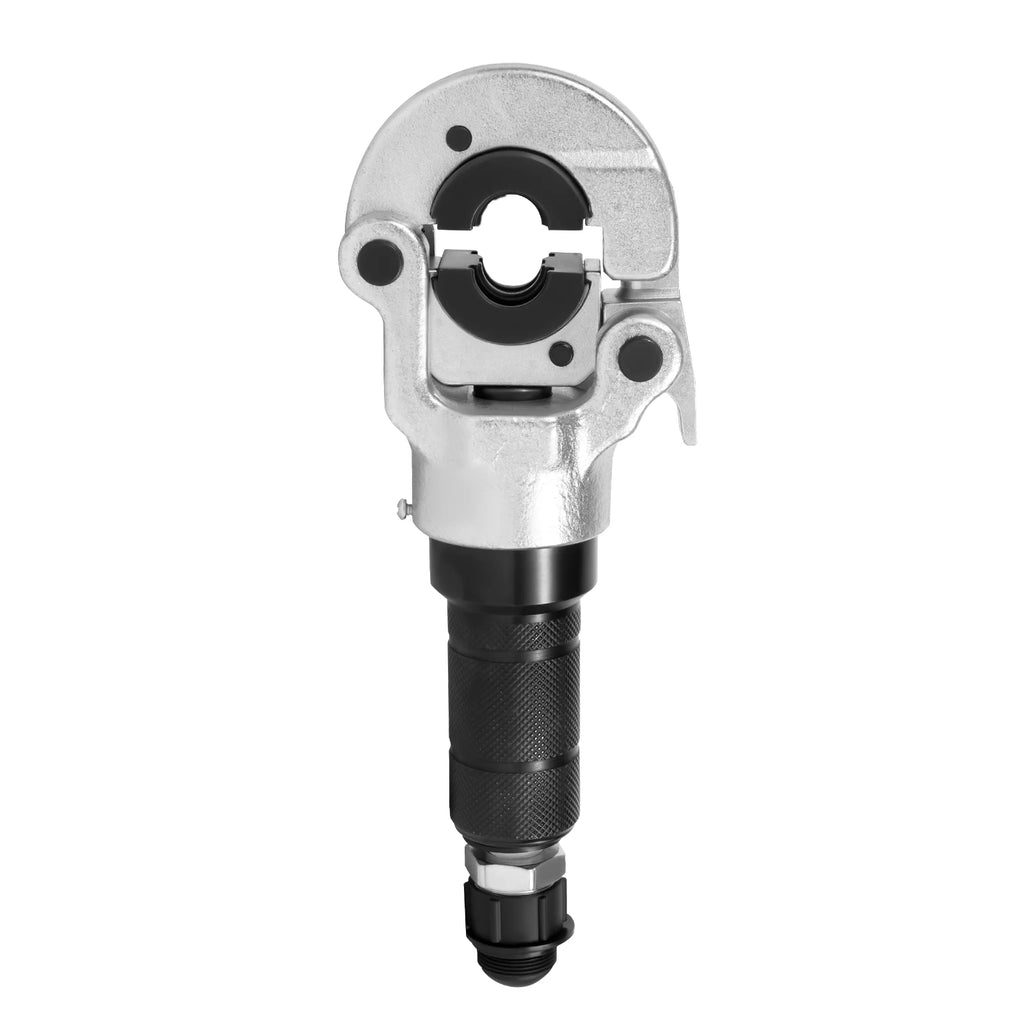

Nine Dies:

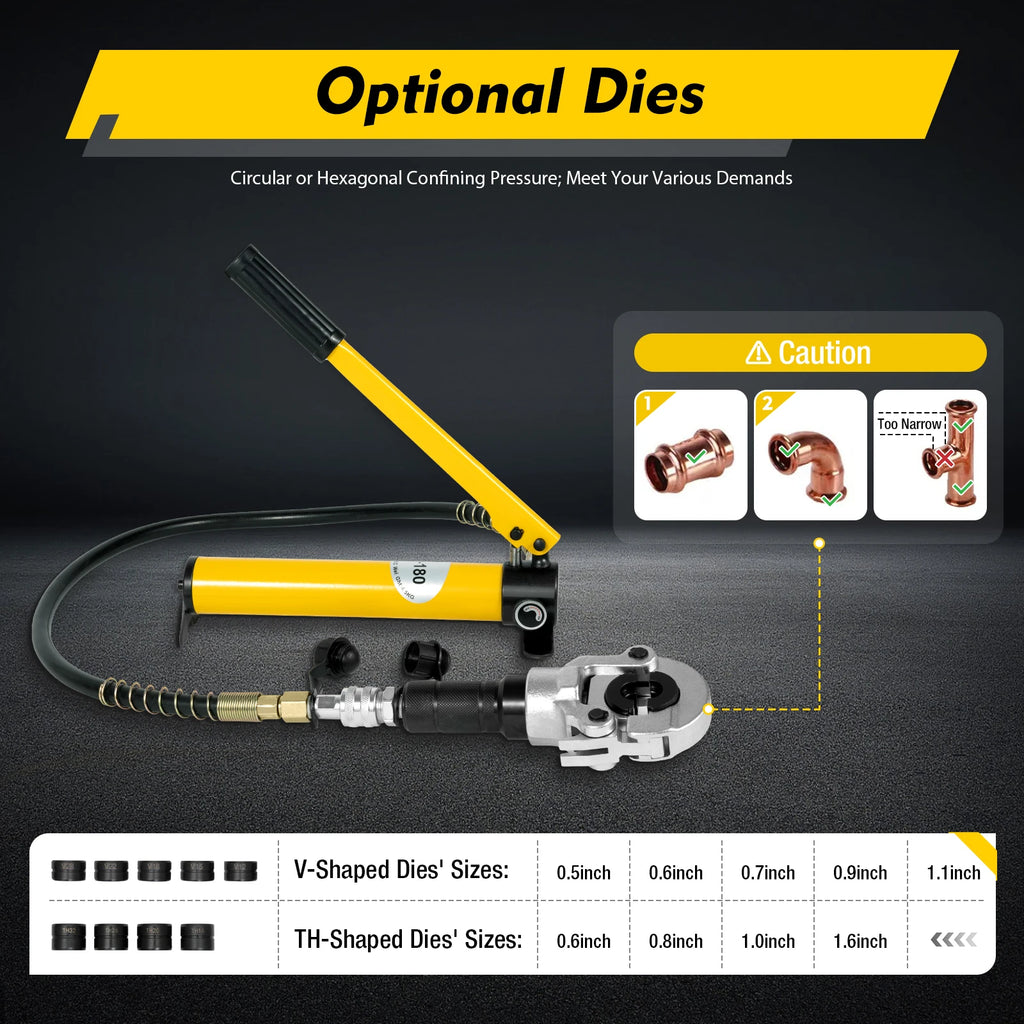

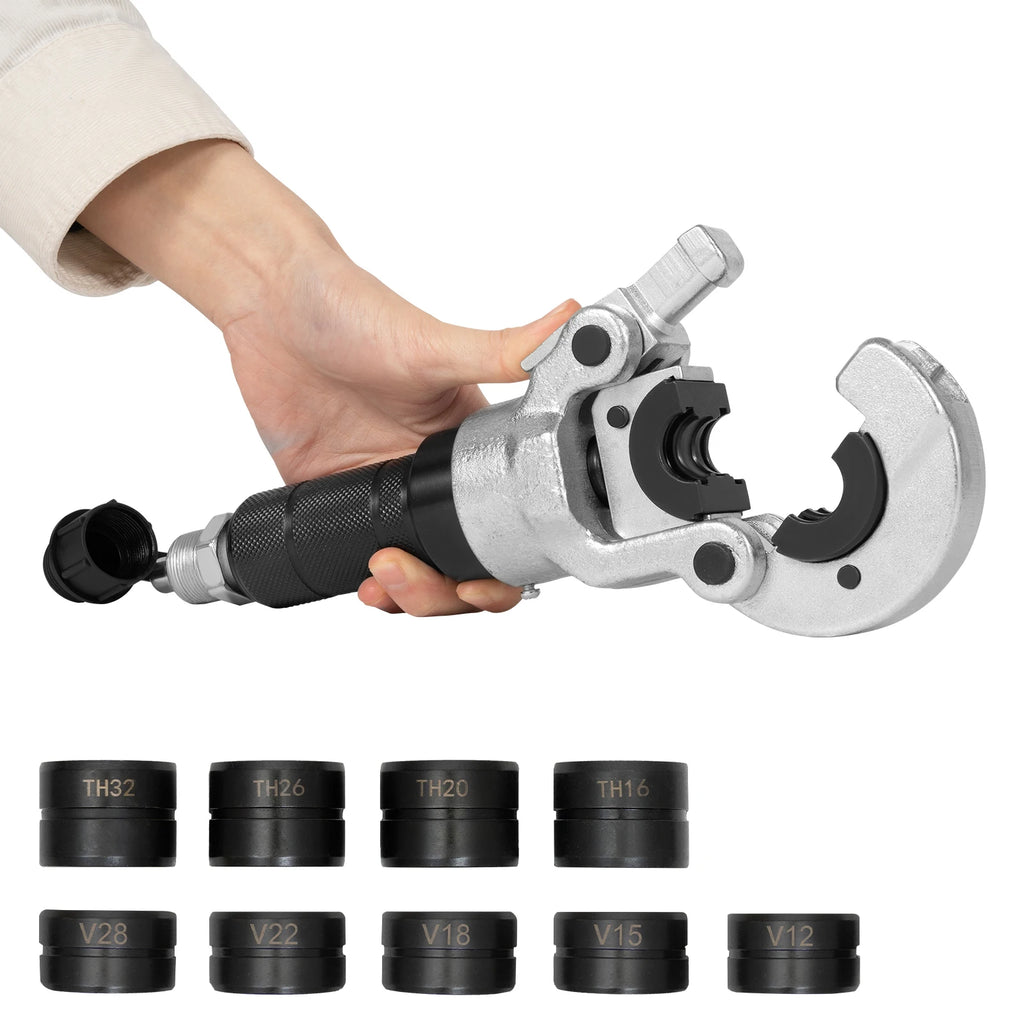

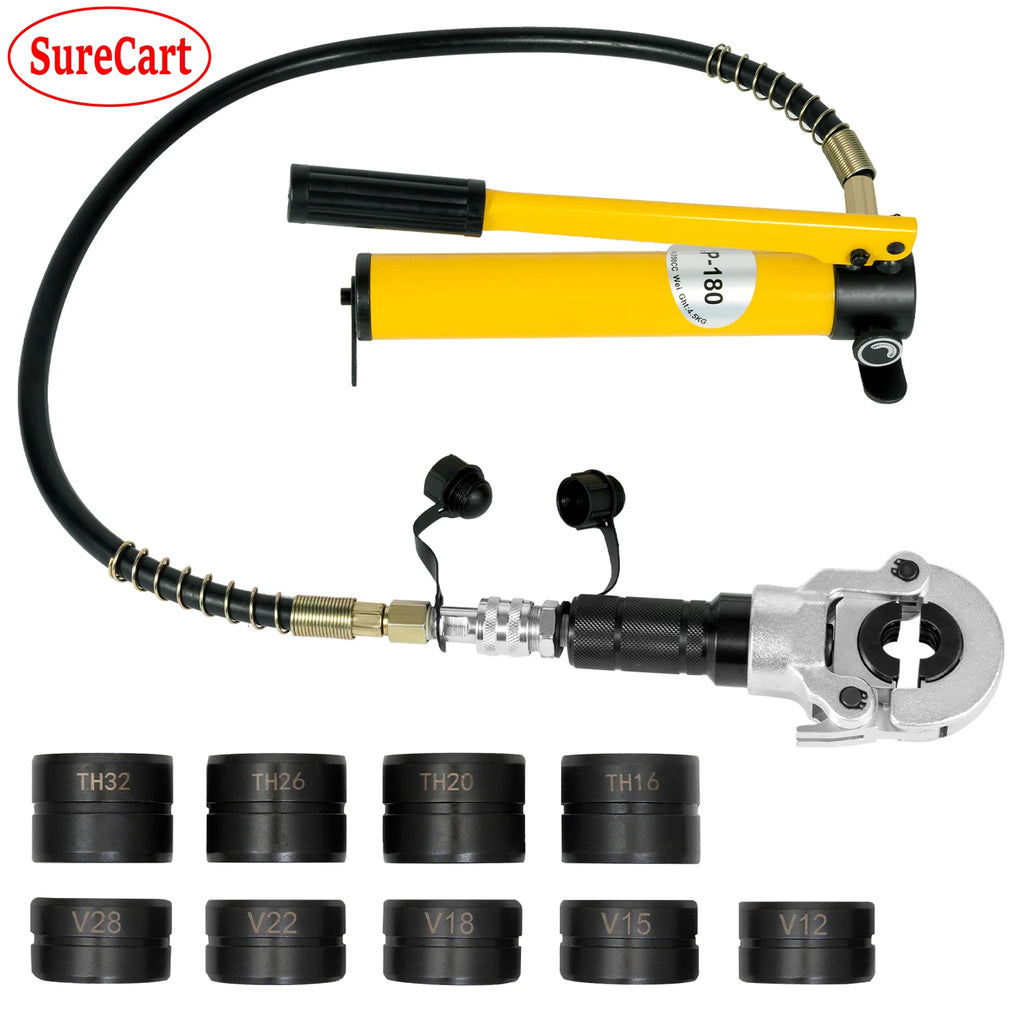

There are two small black buttons on the plier head surface, which can help you fix and disassemble the dies easily. Nine different sizes of V and TH dies are in the package for you to choose and replace. Also, the circular or hexagonal confining pressure can meet your various demands.

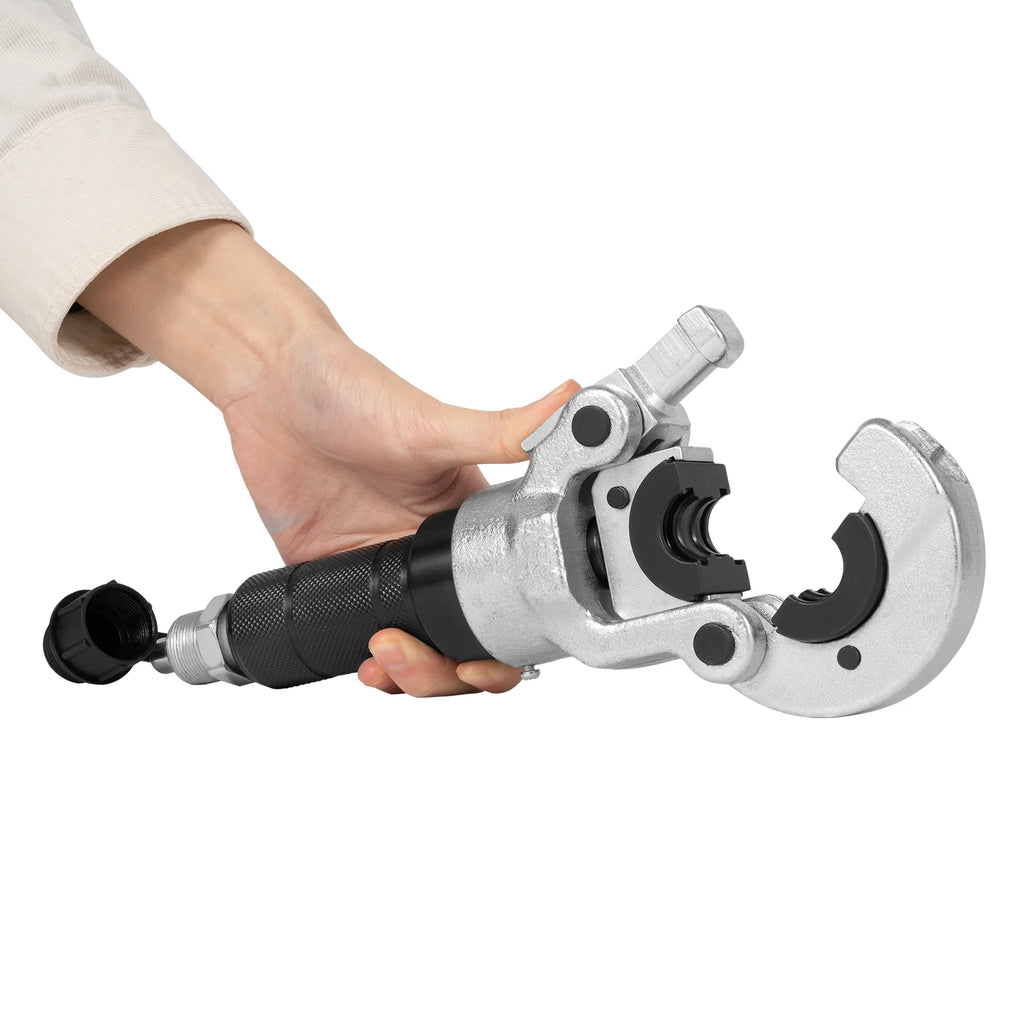

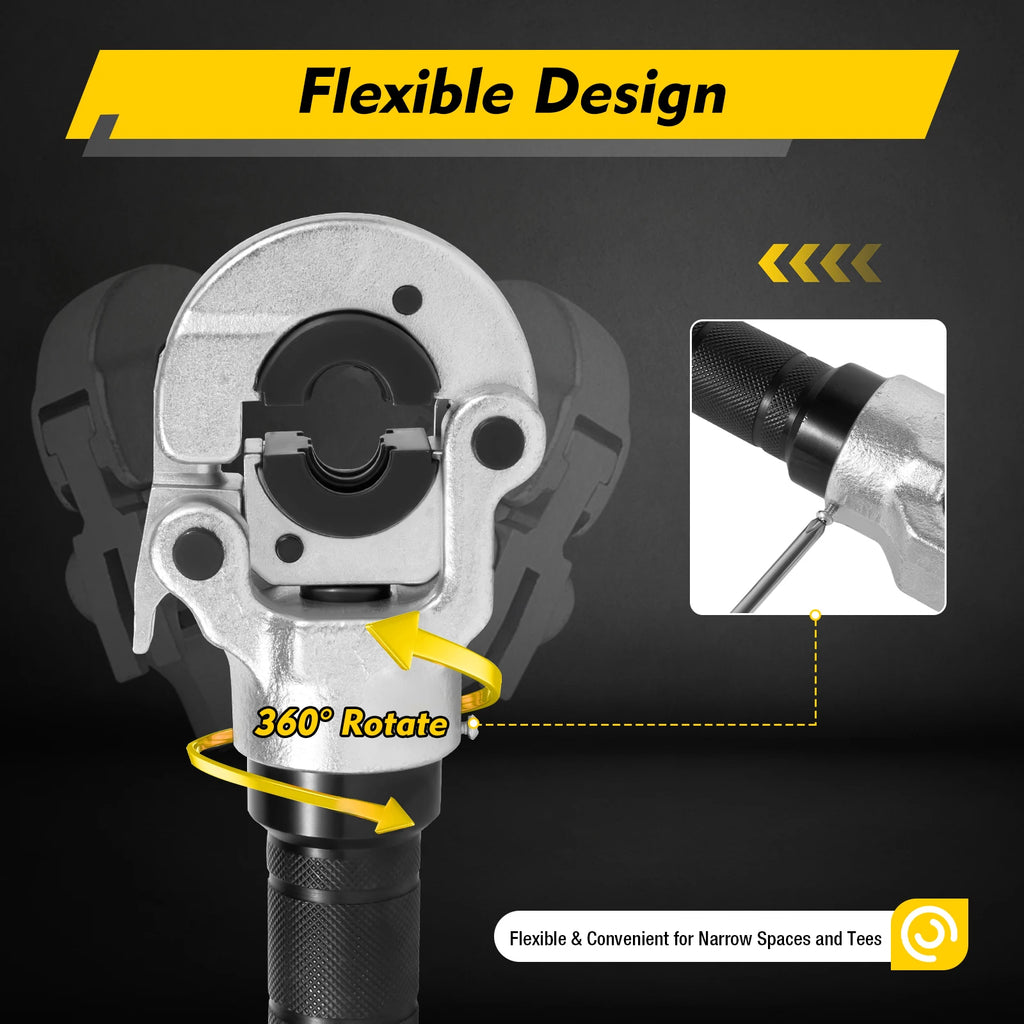

360° Flexible Head:

The plier head can rotate 360°, which allows you to adjust the angle of the plier head flexibly and make your work more convenient. It is a good helper for narrow spaces and tees.

Quality Service:

1. Our products are shipped from Germany or the US depending on the nearest distance. Generally, parcels can arrive within 5 to 10 days.
2. If you have any questions, please feel free to contact us.
3. Note: After sending your message, there's no need to worry. Due to the time difference, we'll respond to your message within 24 hours. For quality issues and damage, we offer a 100% refund guarantee.

Application

This hydraulic tool is suitable for crimping aluminum pipe, PEX pipe, PB pipe, copper pipe, stainless steel sleeve, etc. It also can be applied for domestic water installation, heating installation, gas installation, electricity repair, etc.

Specifications

Color: Yellow
Material: Carbon Steel, CR45 Steel, Steel, Rubber
Surface Treatment: Heat Treatment, Blackening Process, Forging Process, Knurling Process

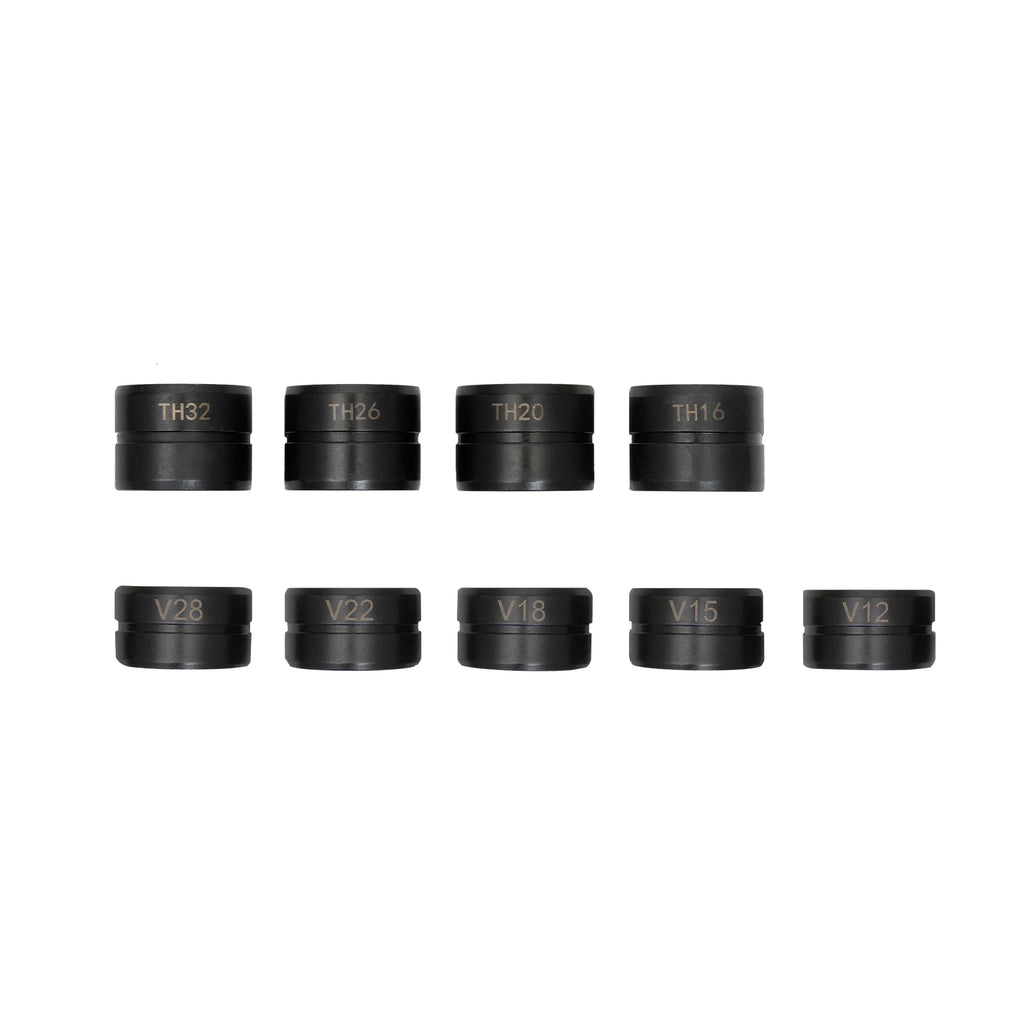

V-Shaped Dies' Sizes: 12mm/0.5inch; 15mm/0.6inch; 18mm/0.7inch; 22mm/0.9inch; 28mm/1.1inch
TH-Shaped Dies' Sizes: 16mm/0.6inch; 20mm/0.8inch; 26mm/1.0inch; 32mm/1.6inch

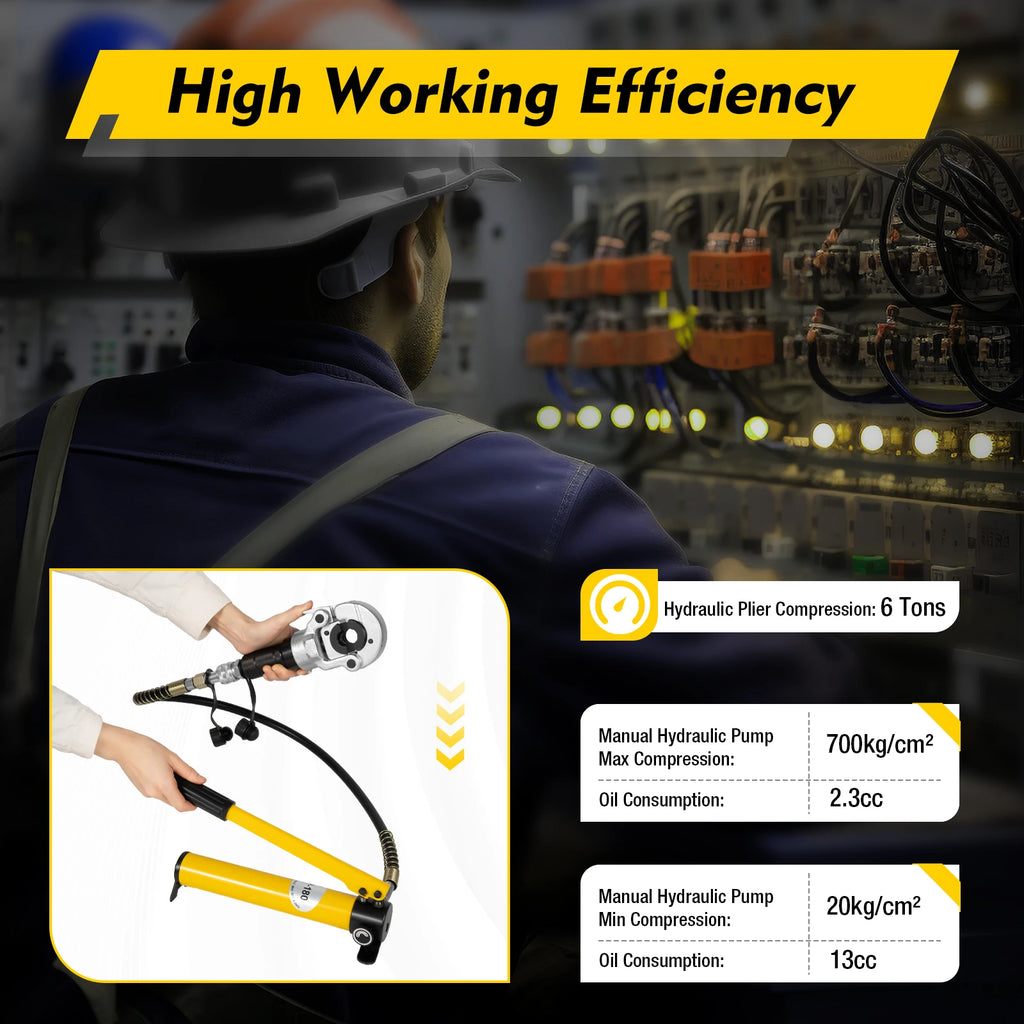

Manual Hydraulic Pump Max Compression: 700kg/cm²(Oil Consumption: 2.3cc)
Manual Hydraulic Pump Min Compression: 20kg/cm²(Oil Consumption: 13cc)
Hydraulic Cylinder Max Capacity: 150cc

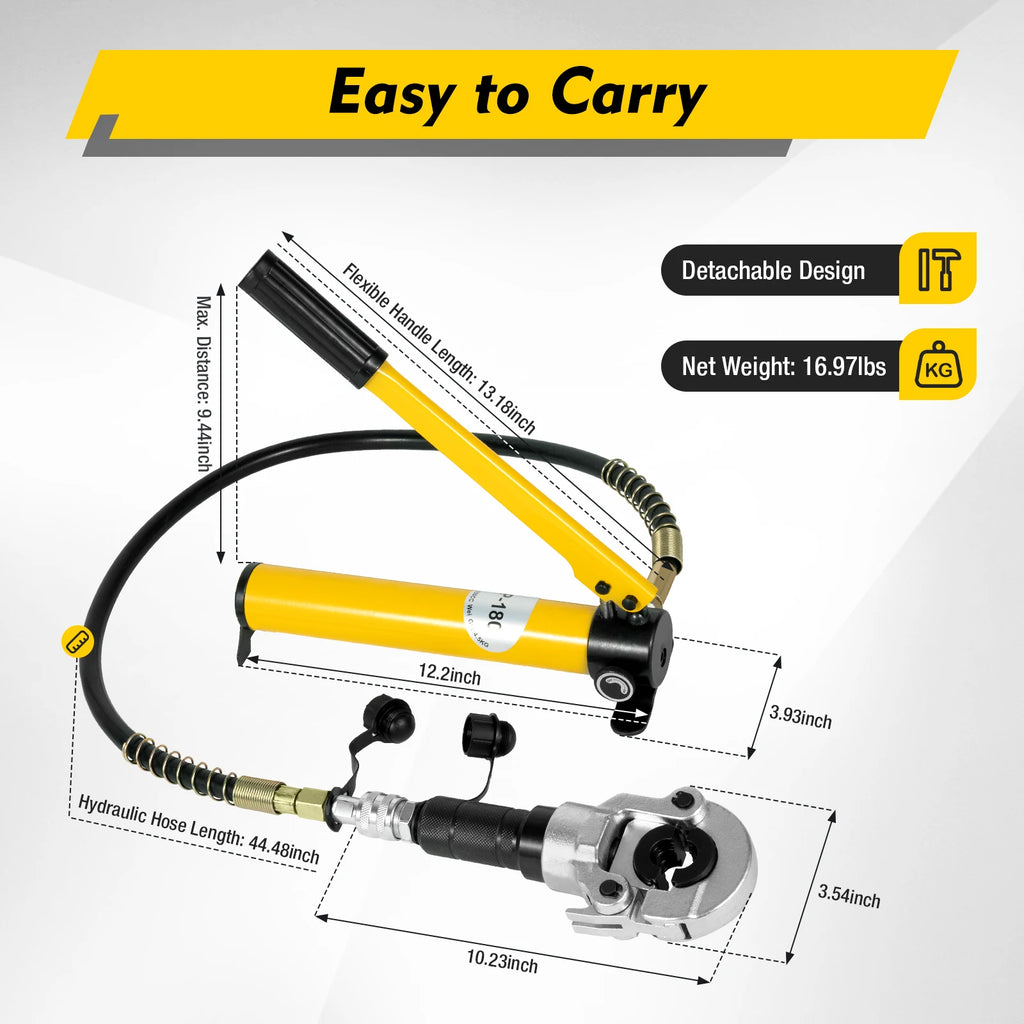

Hydraulic Hose Length: 113cm/44.48inch
Flexible Handle Length: 33.5cm/13.18inch
Hydraulic Plier Compression: 6 Tons
Gross Weight: 8.2kg/18.07lbs
Net Weight: 7.7kg/16.97lbs
Hydraulic Plier Size: 26*9cm/10.23*3.54inch
Manual Hydraulic Pump Size: 31*10cm/12.2*3.93inch
Package Size: 37.5*22.5*16cm/14.76*8.85*6.29inch

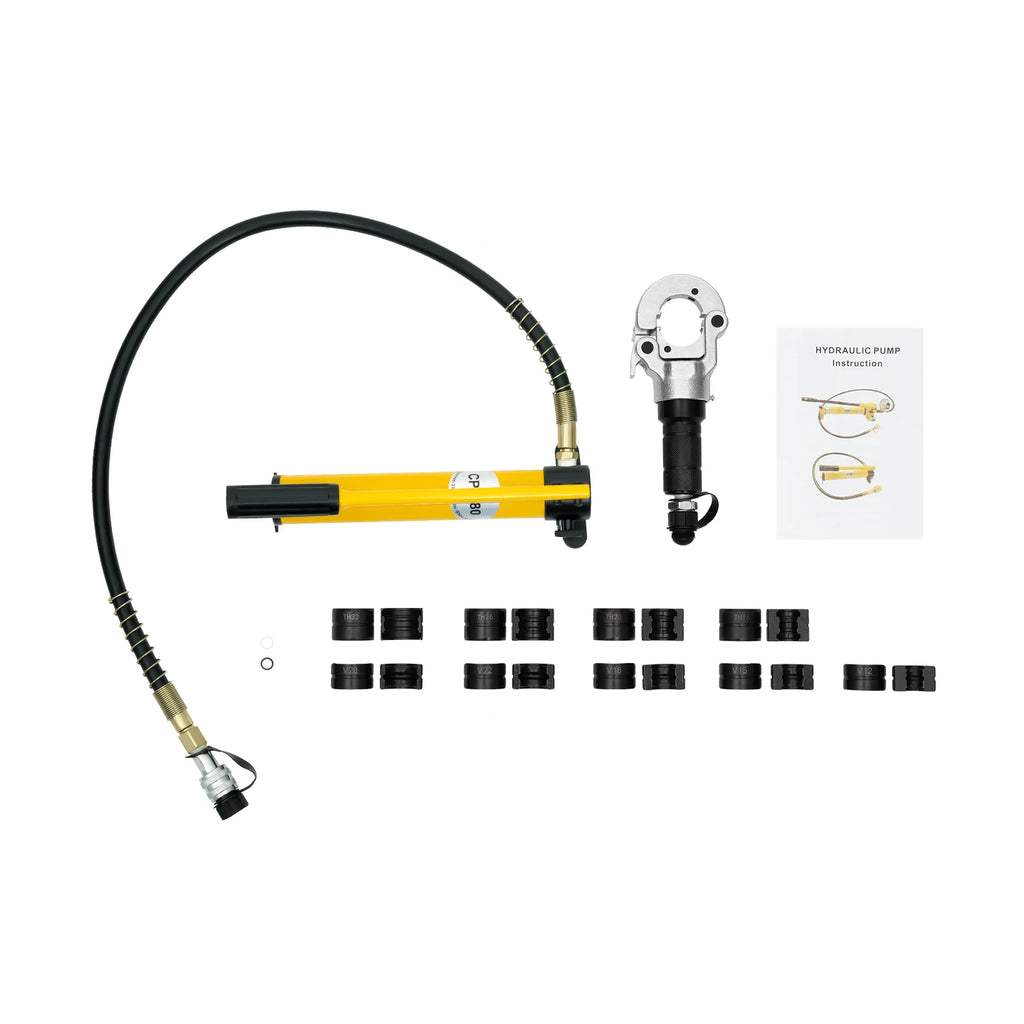

Package Included

1*Hydraulic Plier
1*Manual Hydraulic Pump
9*Dies
1*English Manual
All Accessories for Assembly

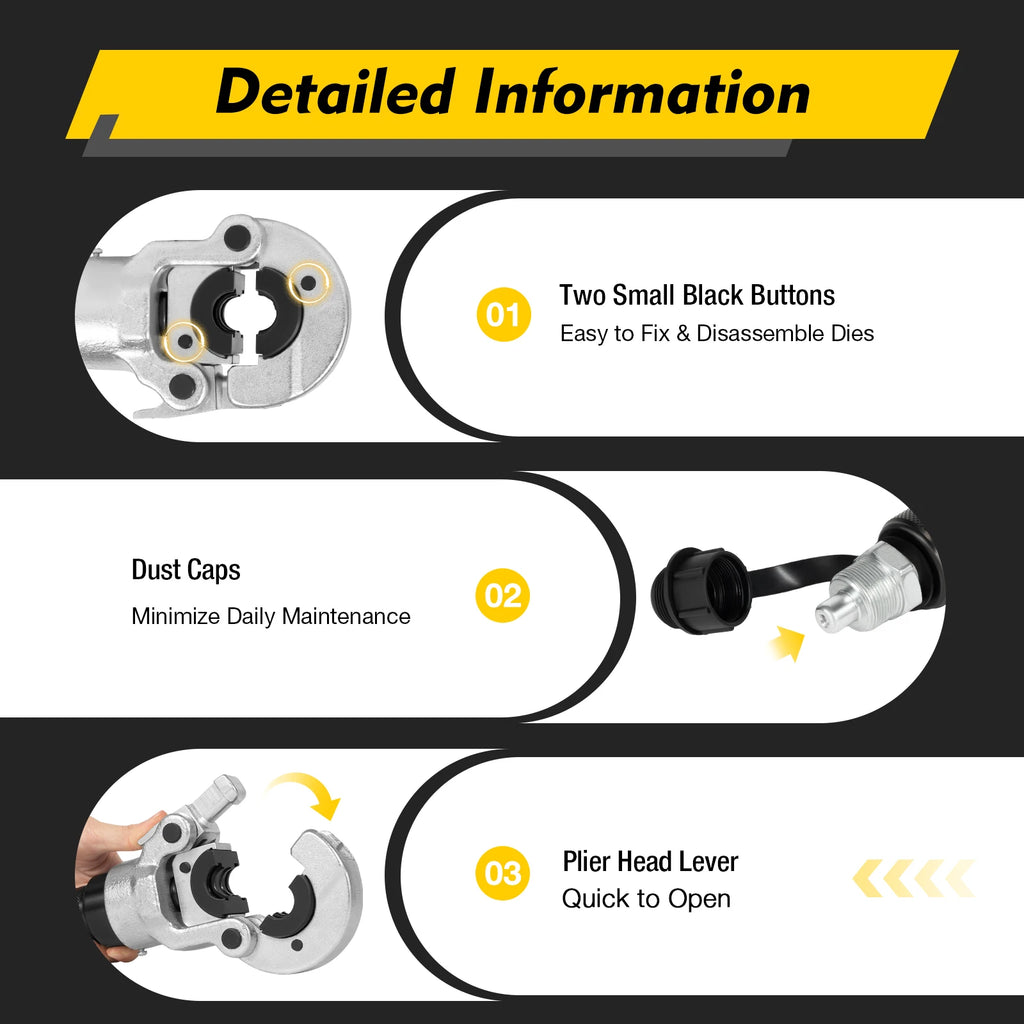

Details

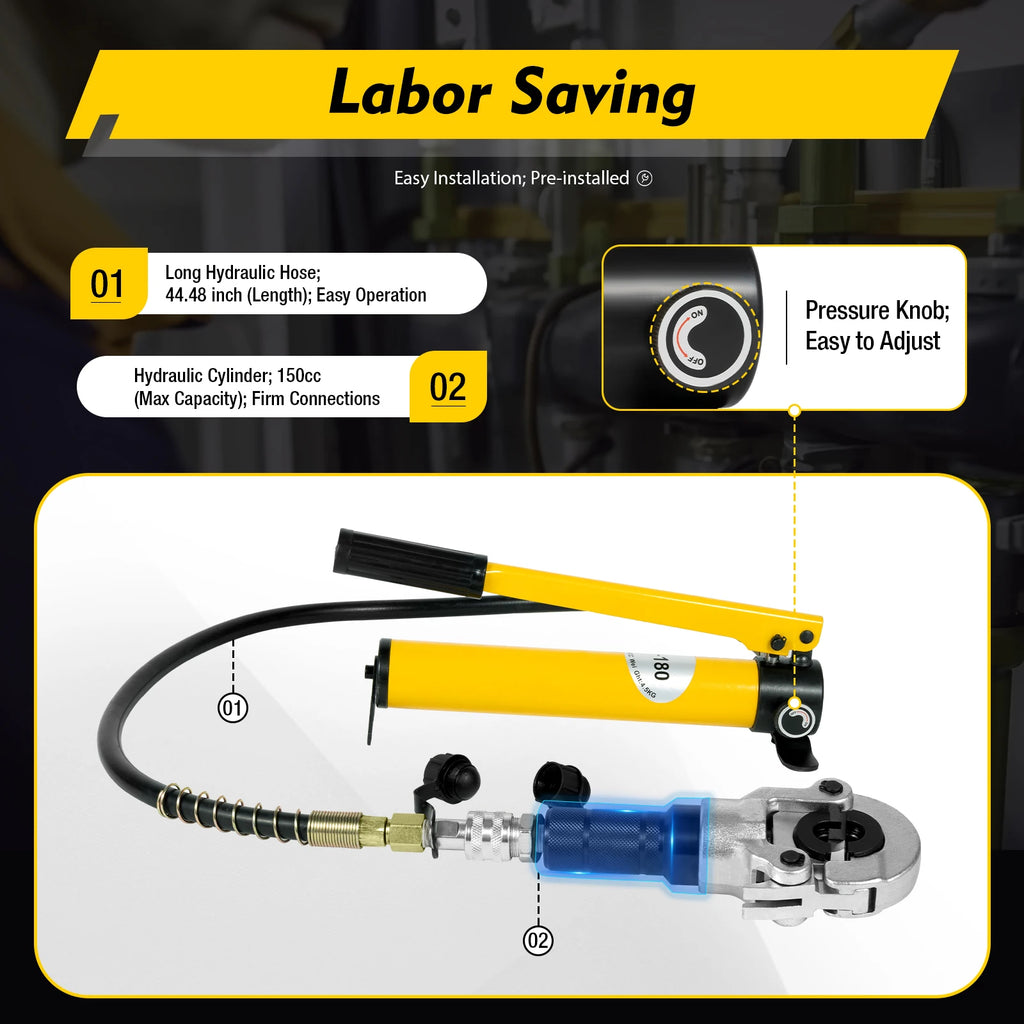

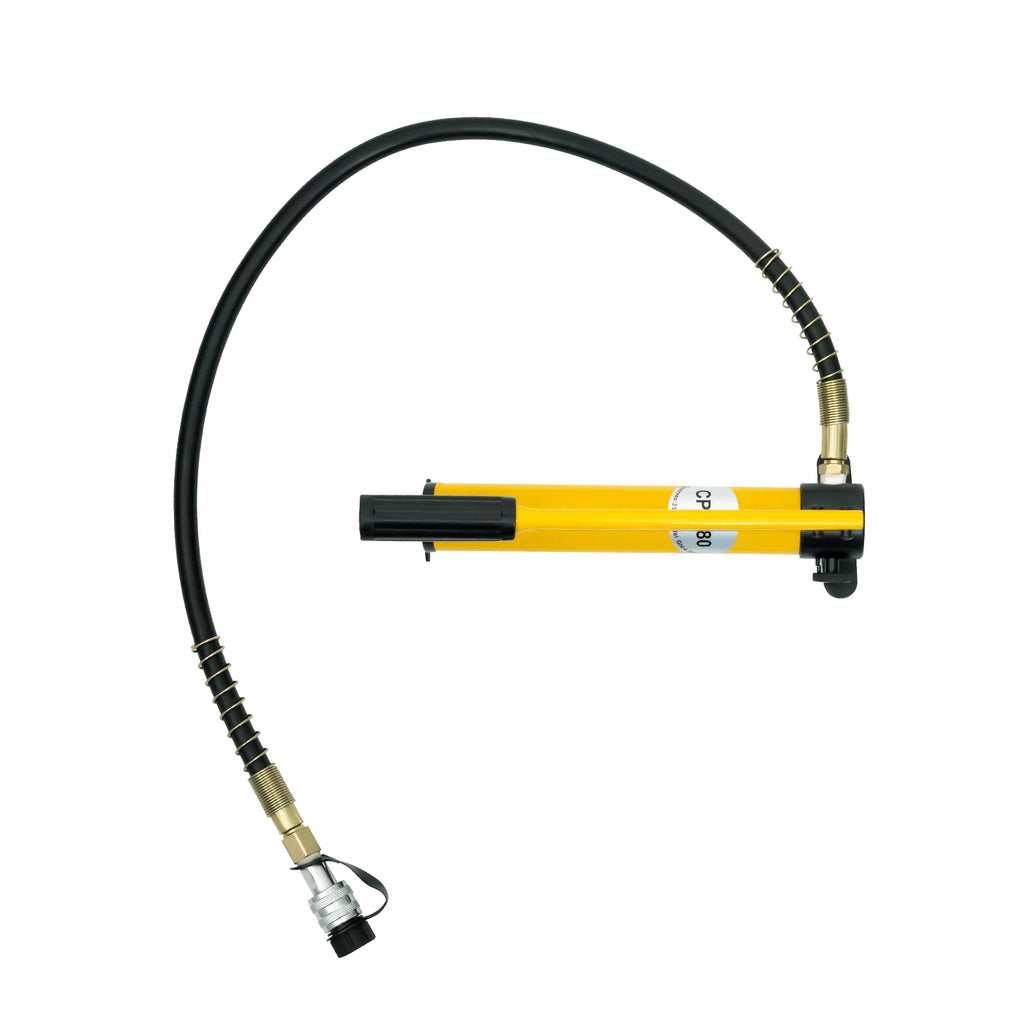

Long Hydraulic Hose 113cm:
The hose has a length of 113cm and can connect the hydraulic plier and manual hydraulic pump, offering easy operation.

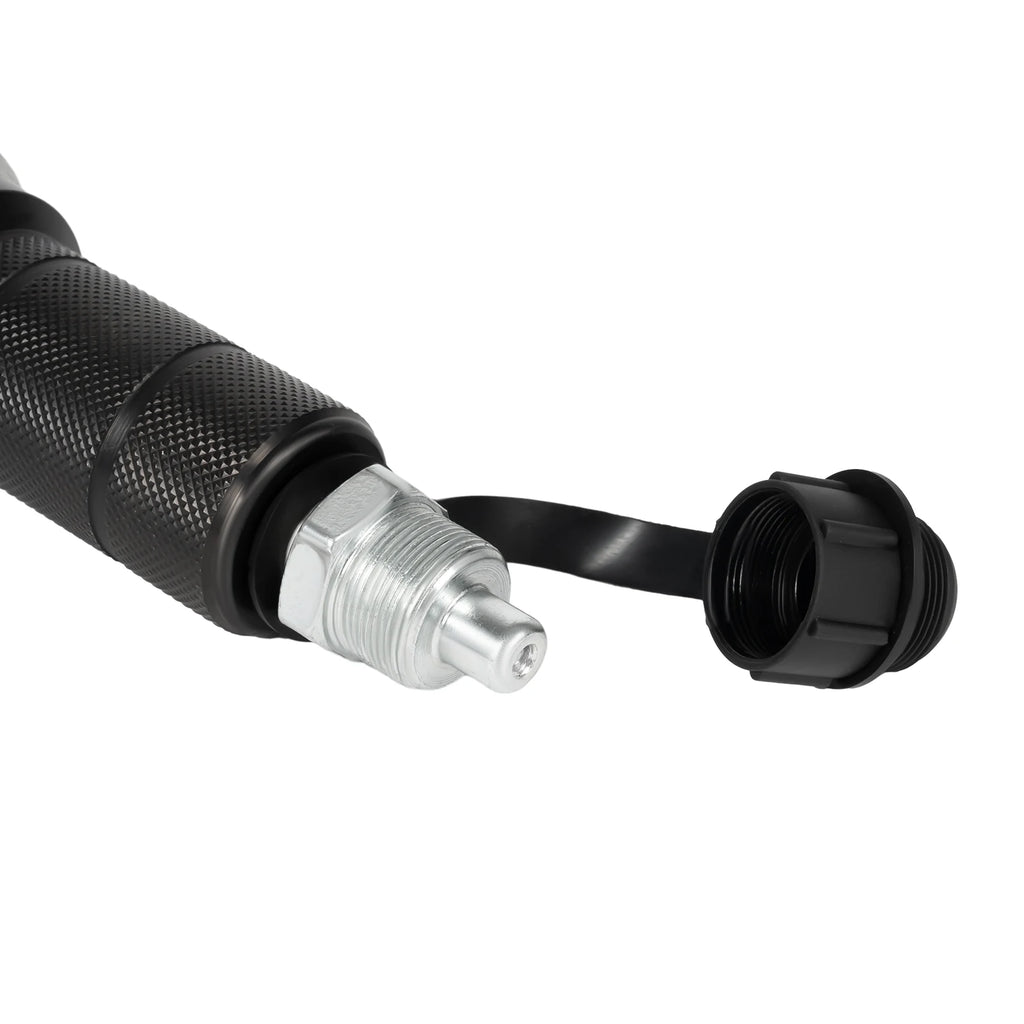

Dust Cap:
It can prevent dust, water, oil, etc. from entering the hydraulic tool while minimizing the need for daily maintenance as much as possible.

Notes

1.The hydraulic plier can't be used well if the pipe distance dimension is very short.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
