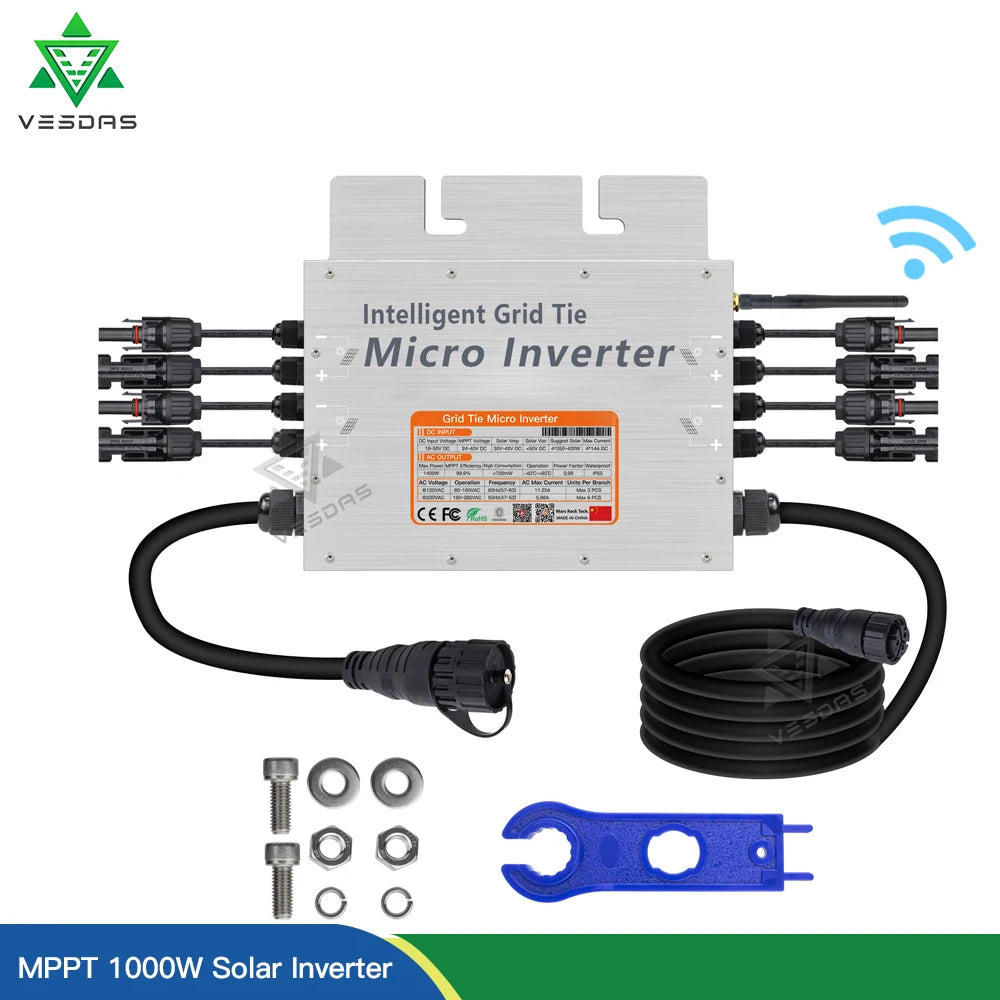

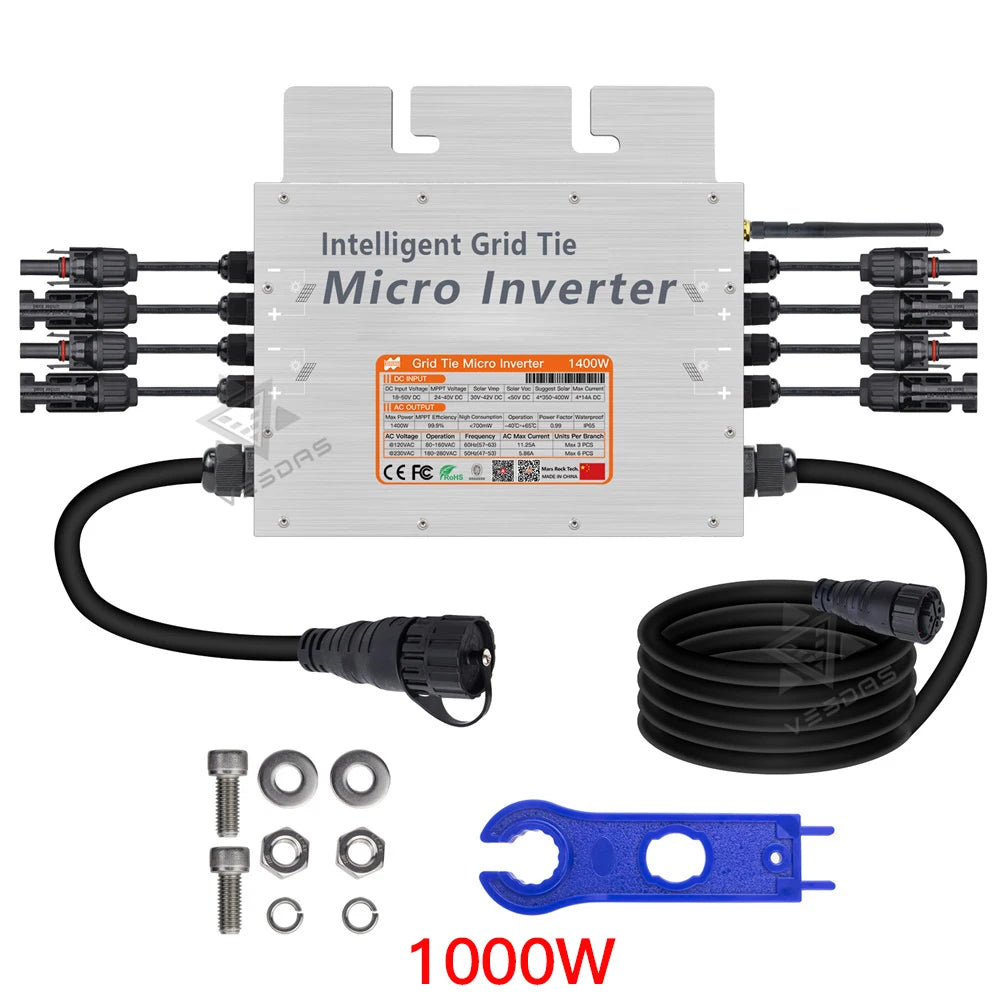

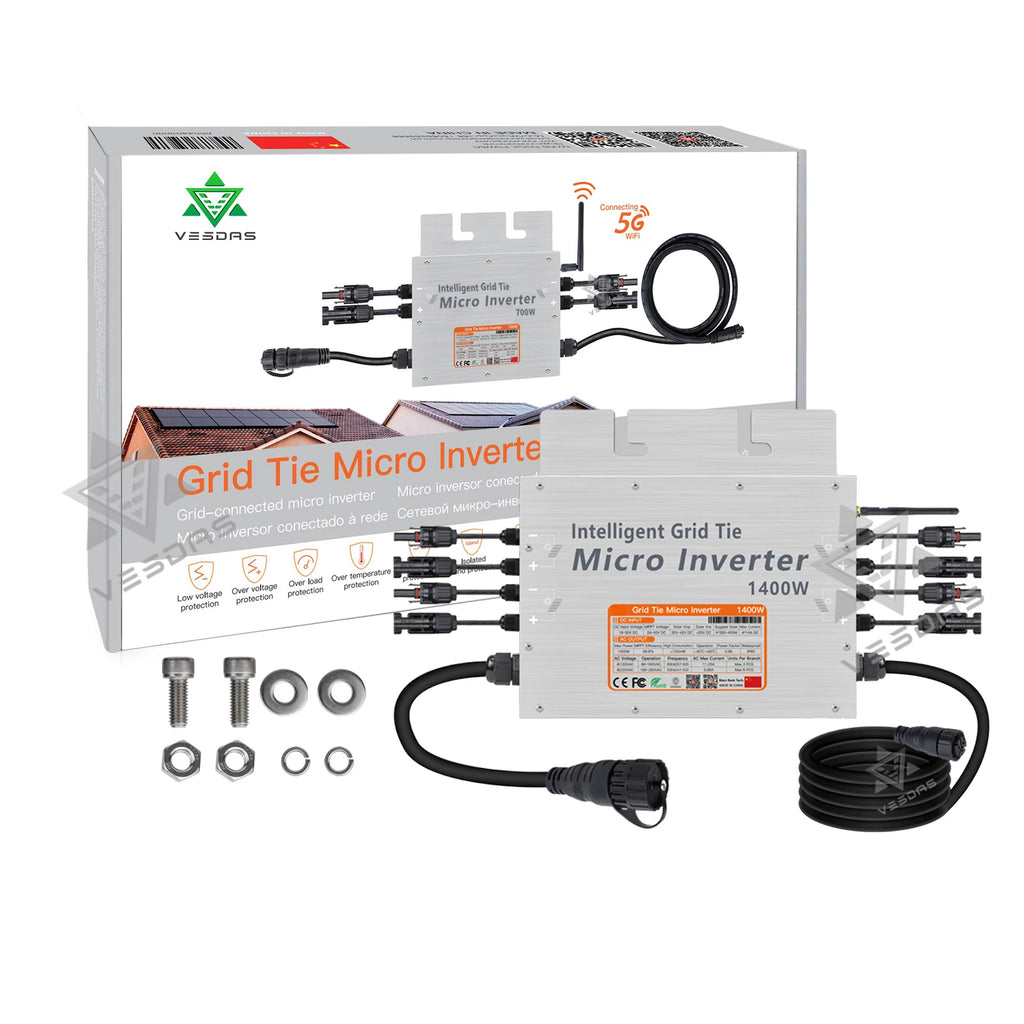

1400W or 1000W Micro Solar Inverter MPPT Home On Grid Tie Inverter 30V 36V DC Pure Sine Wave Power Converter for 110V 220V Grid
: In stock
Regular price
$0.00
$179.99
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: None
Default Output Voltage Range: @120VAC : 80V-160V / @230VAC : 180V-280V
High-concerned chemical: None
Is Smart Device: Yes
Maximum Output Power: 1000W
Maximum Units per Branch: @120VAC : 4 units / @230VAC : 9 units
Model Number: SG1000 SG1400 Series PV Smart Microinverter
Night Power Consumption: <700mW
Nominal MPPT Efficiency: 99.9%
Origin: Mainland China
Output Current: 10A
Output Frequency: 50Hz / 60Hz
Output Power: 801 - 1000KW
Output Type: SINGLE
Rated Output Power: 990W
Size: 250mm x 230mm x 38mm
Total Harmonic Distortion: THD <5%
Waterproof Grade: IP65
Weight: 2.5
is_customized: Yes
Feature:
1.Single unit connects to one PV module
2.Maximum 1000W AC output power
Product Series |
EC700 Series |
||
Model |
EC700MD |
EC700HD |
EC700TD |
(Regular) |
(Custom-made) |
(Custom-made) |
|
Input Data(DC,PV) | |||
Number of Input MC4 Connector |
2 set |
2 set |
2 set |
MPPT Voltage Range |
24V-40V |
36V-60V |
80V-115V |
Operation Voltage Range |
18V-50V |
30V-70V |
70V-120V |
Maximum Input Voltage |
50V |
70V |
120V |
Startup Voltage |
18V |
30V |
70V |
Maximum Input Power |
2*350W |
2*350W |
2*350W |
Maximum Input Current |
2*14A |
2*9.7A |
2*4.3A |
Output Data(AC) | |||
Single-Phase Grid Type |
120V & 230V |
||
Rated Output Power |
650W |
||
Maximum Output Power |
700W |
||
Nominal Output Current |
@120VAC : 5.4A / @230VAC : 2.8A |
||
Nominal Output Voltage |
120VAC / 230VAC |
||
Default Output Voltage Range |
@120VAC : 80V-160V / @230VAC : 180V-280V |
||
Nominal Output Frequency |
50Hz / 60Hz |
||
Default Output Frequency Range |
@50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz |
||
Power Factor |
>0.99 |
||
Total Harmonic Distortion |
THD <5% |
||
Maximum Units per Branch |
@120VAC : 4 units / @230VAC : 7 units |
||
Efficiency | |||
Peak Efficiency |
95% |
||
CEC Weighted Efficiency |
@120VAC : 92.5% / @230VAC : 93.5% |
||
Nominal MPPT Efficiency |
99.90% |
||
Night Power Consumption |
<700mW |
||
Mechanical Data | |||
Operating Ambient Temperature Range |
-40°C to +65°C |
||
Storage Temperature Range |
-40°C to +85°C |
||
Dimensions (W x H x D) |
185mm x 180mm x 38.5mm (not include connectors and cable) |
||
Weight |
1.5kg |
||

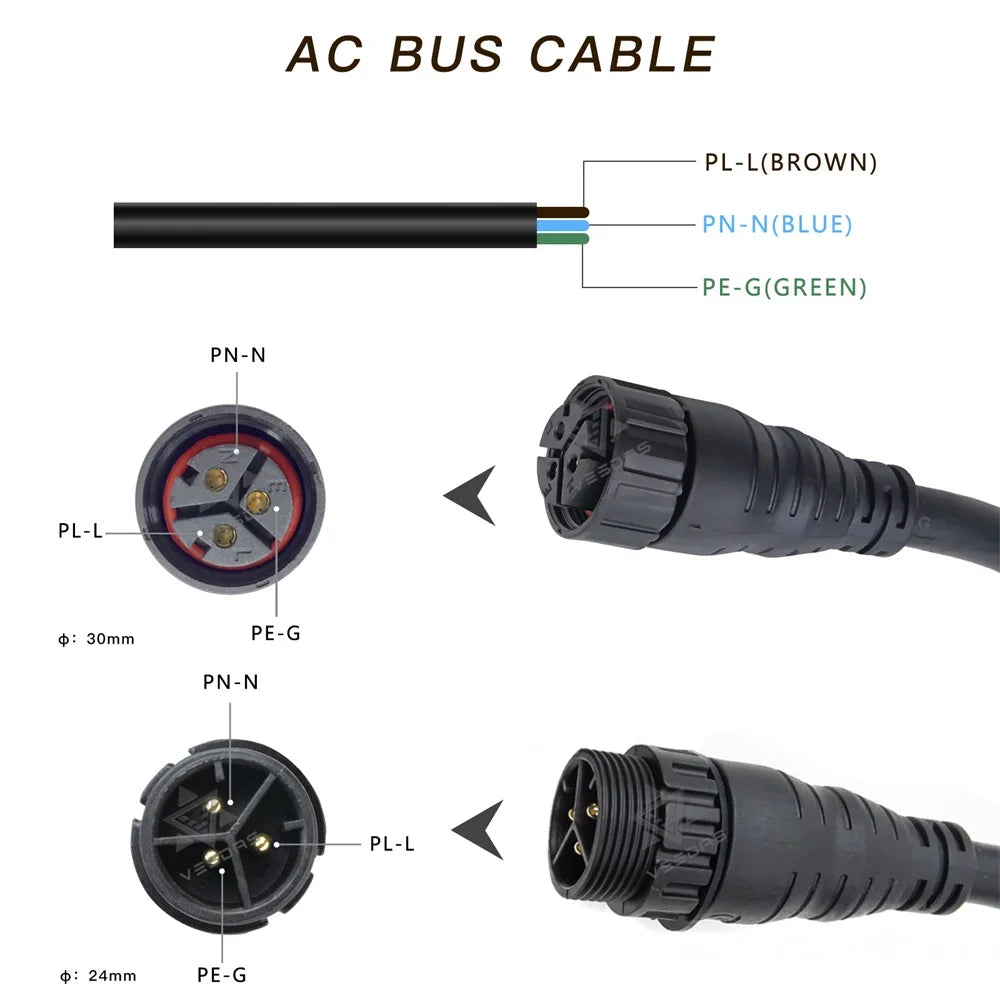

Max Current of AC Bus Cable |
20A |
||
Waterproof Grade |
IP65 |
||
Cooling Mode |
Natural Convection - No Fans |
||
Other Features | |||
Communication(Inverter to DataBox) |
2.4G Wireless |
||
Transformer Design |
High Frequency Transformers, Galvanically Isolated |
||
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
||
Protection Functions |
Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. |
||
Design Compliance |
NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc. |
||
Product Series |
EC1000 Series |
|||
Model |
EC1000MQ (Regular) |
EC1000MD (Custom-made) |
EC1000HD (Custom-made) |
EC1000TQ (Custom-made) |
Input Data(DC,PV) | ||||
Number of Input MC4 Connector |
4 set |
2 set |
2 set |
4 set |
MPPT Voltage Range |
22V-40V |
22V-40V |
36V-60V |
80V-115V |
Operation Voltage Range |
18V-50V |
18V-50V |
30V-70V |
70V-120V |
Maximum Input Voltage |
50V |
50V |
70V |
120V |
Startup Voltage |
18V |
18V |
30V |
70V |
Maximum Input Power |
4*250W |
2*500W |
2*500W |
4*250W |
Maximum Input Current |
4*10A |
2*20A |
2*13.8A |
4*3.1A |
Output Data(AC) | ||||
Single-Phase Grid Type |
120V & 230V |
|||
Rated Output Power |
990W |
|||
Maximum Output Power |
1000W |
|||
Nominal Output Current |
@120VAC : 8.25A / @230VAC : 4.3A |
|||
Nominal Output Voltage |
120VAC / 230VAC |
|||
Default Output Voltage Range |
@120VAC : 80V-160V / @230VAC : 180V-280V |
|||
Nominal Output Frequency |
50Hz / 60Hz |
|||
Default Output Frequency Range |
@50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz |
|||
Power Factor |
>0.99 |
|||
Total Harmonic Distortion |
THD <5% |
|||
Maximum Units per Branch |
@120VAC : 4 units / @230VAC : 9 units |
|||
Efficiency | ||||
Peak Efficiency |
95% |
|||
CEC Weighted Efficiency |
@120VAC : 92.5% / @230VAC : 93.5% |
|||
Nominal MPPT Efficiency |
99.9% |
|||
Night Power Consumption |
<700mW |
|||
Mechanical Data | ||||
Operating Ambient Temperature Range |
-40°C to +65°C |
|||
Storage Temperature Range |
-40°C to +85°C |
|||

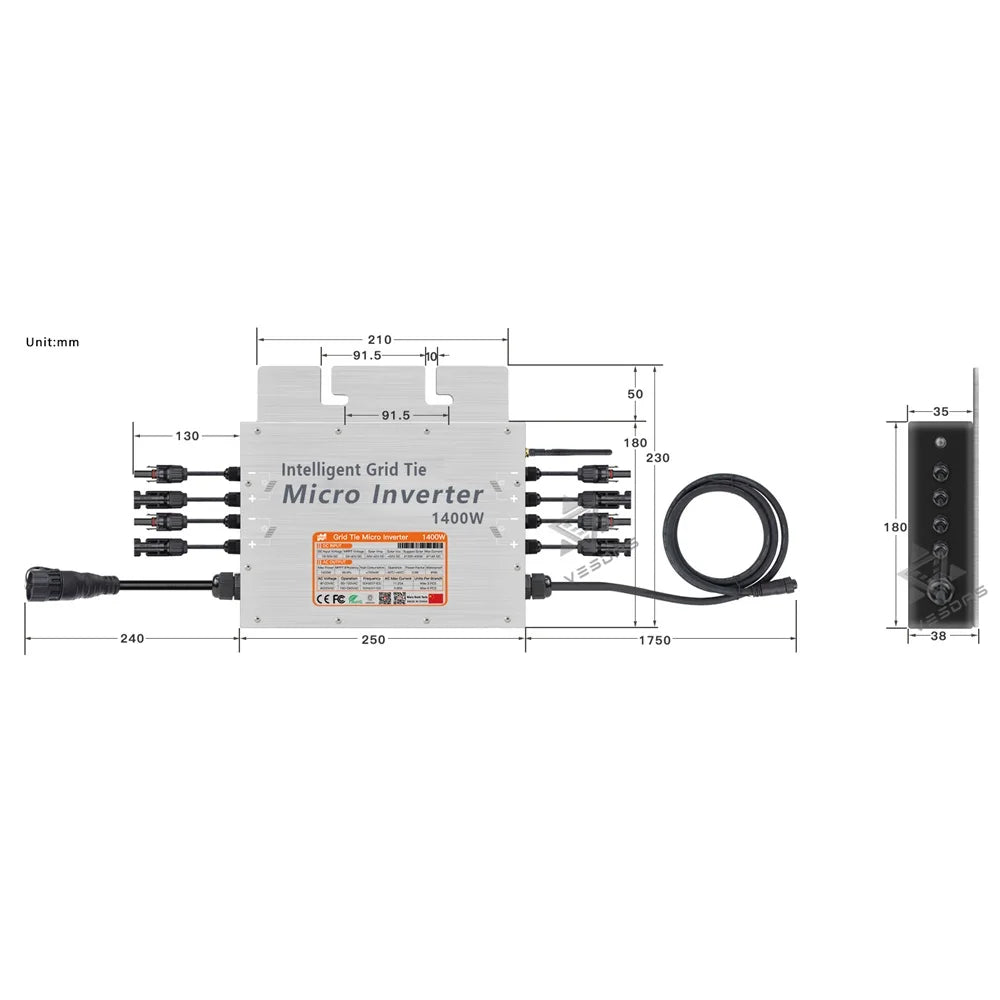

Dimensions (W x H x D) |
250mm x 230mm x 38mm (not include connectors and cable) |
|||
Weight |
2.5kg |
|||
Max Current of AC Bus Cable |
40A |
|||
Waterproof Grade |
IP65 |
|||
Cooling Mode |
Natural Convection - No Fans |
|||
OtherFeatures | ||||
Communication(Inverter to DataBox) |
2.4G Wireless |
|||
Transformer Design |
High Frequency Transformers, Galvanically Isolated |
|||
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
|||
Protection Functions |
Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. |
|||
Design Compliance |
NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc. |
|||

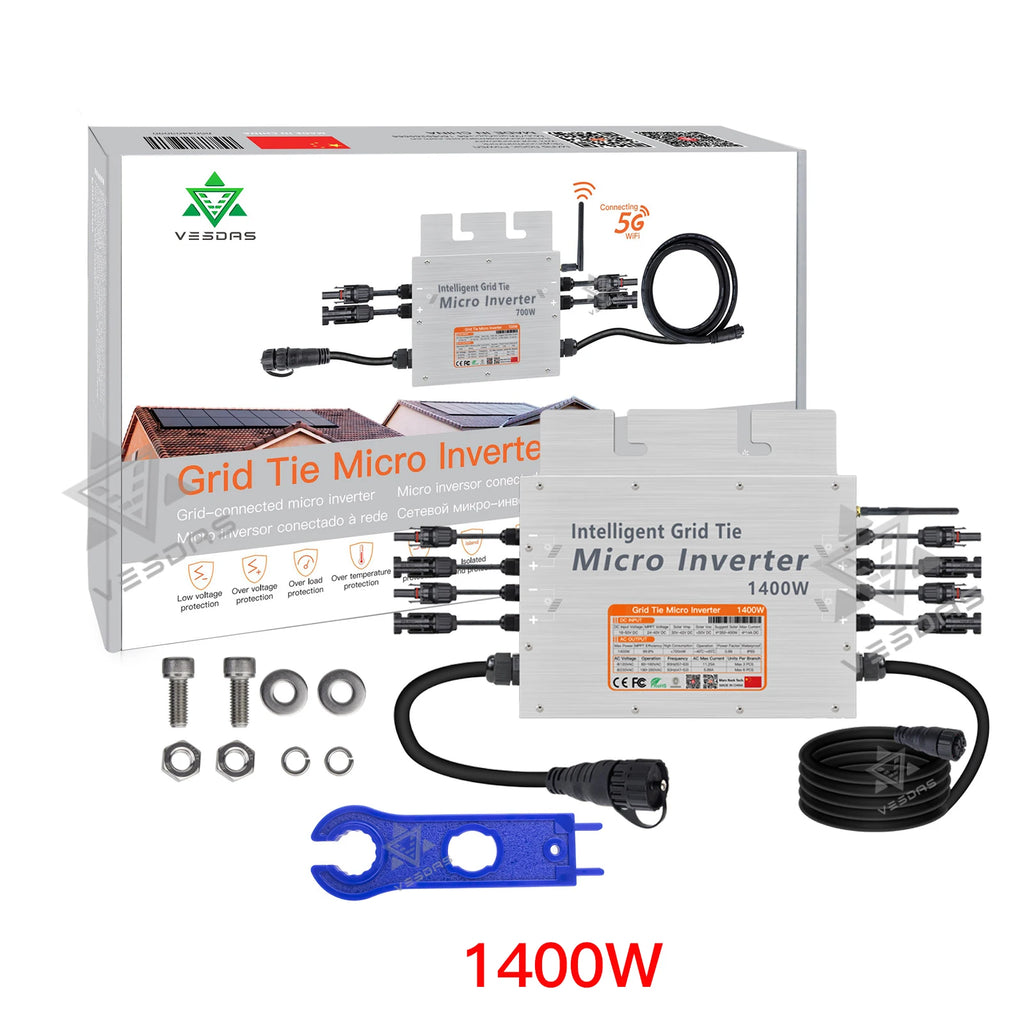

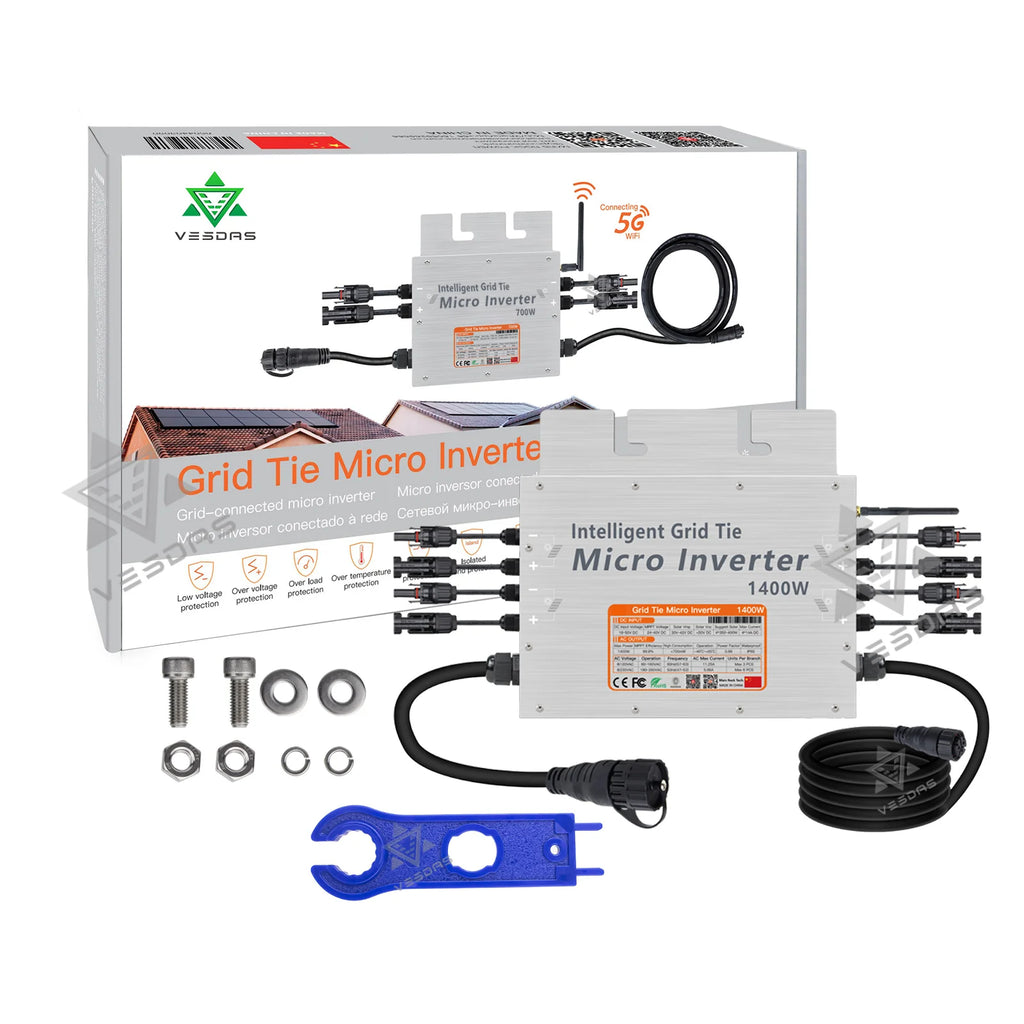

Product Series |
EC1400 Series |
|
Model |
EC1400MQ |
EC1400HQ |
(Regular) |
(Custom-made) |
|
Input Data(DC,PV) | ||
Number of Input MC4 Connector |
4 set |
4 set |
MPPT Voltage Range |
24V-40V |
36V-60V |
Operation Voltage Range |
18V-50V |
30V-70V |
Maximum Input Voltage |
50V |
70V |
Startup Voltage |
18V |
30V |
Maximum Input Power |
4*350W |
4*350W |
Maximum Input Current |
4*14A |
4*9.7A |
Output Data(AC) | ||
Single-Phase Grid Type |
120V & 230V |
|
Rated Output Power |
1350W |
|
Maximum Output Power |
1400W |
|
Nominal Output Current |
@120VAC : 11.25A / @230VAC : 5.86A |
|
Nominal Output Voltage |
120VAC / 230VAC |
|
Default Output Voltage Range |
@120VAC : 80V-160V / @230VAC : 180V-280V |
|
Nominal Output Frequency |
50Hz / 60Hz |
|
Default Output Frequency Range |
@50Hz : 47.5Hz-52.5Hz / @60Hz : 57.5Hz-62.5Hz |
|
Power Factor |
>0.99 |
|
Total Harmonic Distortion |
THD <5% |
|
Maximum Units per Branch |
@120VAC : 3 units / @230VAC : 6 units |
|
Efficiency | ||
Peak Efficiency |
95% |
|
CEC Weighted Efficiency |
@120VAC : 92.5% / @230VAC : 93.5% |
|
Nominal MPPT Efficiency |
99.90% |
|
Night Power Consumption |
<700mW |
|
Mechanical Data | ||
Operating Ambient Temperature Range |
-40°C to +65°C |
|
Storage Temperature Range |
-40°C to +85°C |
|

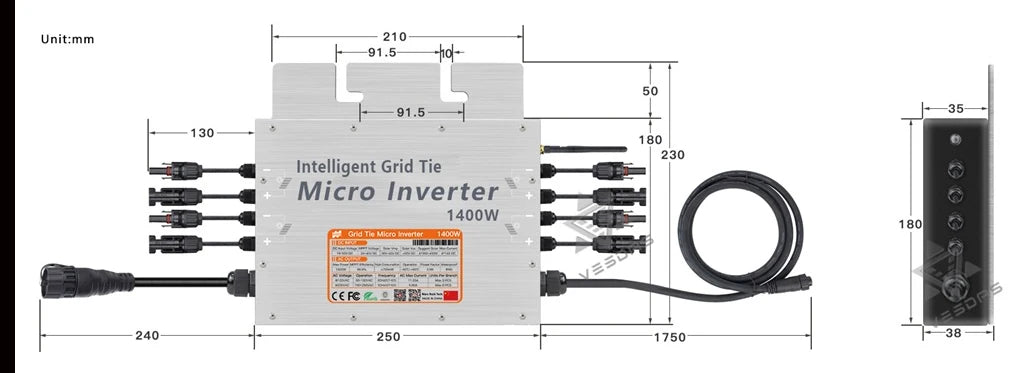

Dimensions (W x H x D) |
250mm x 230mm x 38mm (not include connectors and cable) |
|
Weight |
2.5kg |
|
Max Current of AC Bus Cable |
40A |
|
Waterproof Grade |
IP65 |
|
Cooling Mode |
Natural Convection - No Fans |
|
Other Features | ||
Communication(Inverter to DataBox) |
2.4G Wireless |
|
Transformer Design |
High Frequency Transformers, Galvanically Isolated |
|
Integrated Ground |
Equipment ground is provided by the PE in the AC cable. No additional ground is required. |
|
Protection Functions |
Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc. |
|
Design Compliance |
NB/T32004:2013,NB/T32004:2013,EN61000-3-2,EN62109,VDE0126,UL1741 etc. |
|
